3D Granite Stone Cutting CNC Marble Stone Engraving Machine

The complete variety, novel design, and excellent quality of our Line Polishing Machine, Slab Polishing Machine, Double Blade Granite Mining Machinery have impressed our customers both at home and abroad. Our goal is to provide customers with high quality and flawless products in a timely manner, so that the satisfaction of customers can reach 100%. We will always follow the development of society and adhere to the quality policy of continuous reform, rigorous planning, striving for perfection and excellence.

iGS-B with five-axis linkage control, is a multifunctional CNC bridge stone machine. Achieve actions: lateral cutting, longitudinal cutting, curved cutting, elliptical cutting, Round cutting, miter cutting, cutting at any angle, drilling, milling and profiling cutting.

This is a 2023 newly designed 5 axis CNC bridge saw for stone cutting. It is added with a camera to automatically position plates. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc. Its maximum cutting length is 2800mm, maximum cutting widths is 1200mm, and maximum cutting thicknesses is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. It is the ideal machine for large and industrial stone professing factory.

Realize The Function

1.Countertop mode: make different shape top of kitchen, barthroom with basin hole, straight, oblique or curved edge.

2.Alien mode: realize CAD drawing import, cut completely according to drawing style, no need to input complex data.

3. Bridge cut mode: It has all the functions of the bridge cutting equipment on the market.

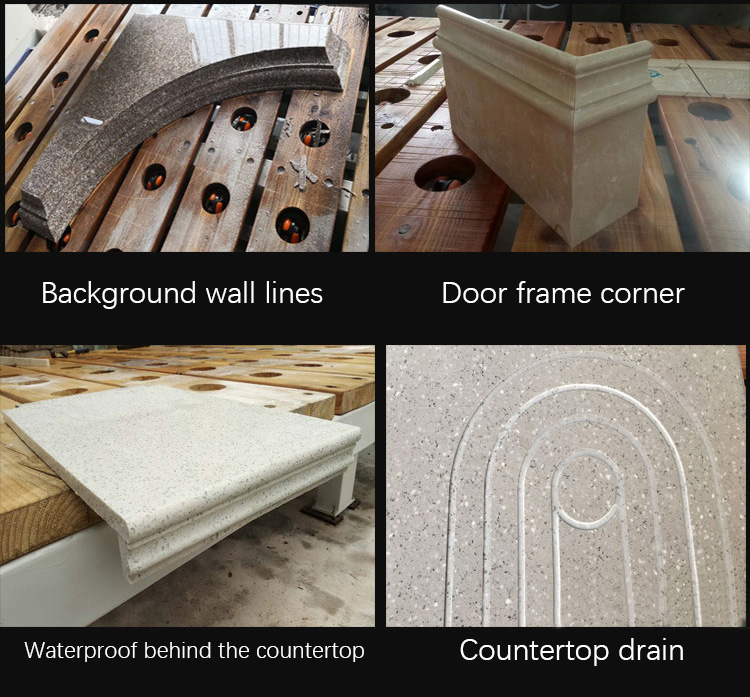

4. Special-shap line cutting: process for decorating door frames, windows, columns and walls, etc , which needs manual polishing.

5. Bump mode: Grind out the desired convex or concave plate according to the curvature. It is mainly used for the grinding of curved plates of special-shaped wall or special-shaped decorative panels.

6. Size and head mode: solve the problem that the wall is not straight, big and small, and cut out the asymmetrical quadrilateral or isosceles trapezoid.

Features

• 1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
• 2. It is equipped with a high-precision on-board camera, which brings higher-definition images and can provide high-precision stone processing. Moreover, it can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
• 3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.
• 4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
• 5. The robotic system has a lift capacity of 75 kgs for stone slab moving. 6. The 5-axis cutting head can miter and interpolate in any direction.

What Is 5 Axis CNC Bridge Saw?

5 axis CNC bridge saw is an automatic stone machining equipment that can complete the processing of pentahedron special-shaped curved surfaces at one time through five-axis linkage control, that is, three linear moving axes and two rotating axes. It is a type of automatic CNC machine tailor-made for the majority of stone fabricators by IGOLDENCNC in order to meet the cutting plans of stone machining manufacturers. It has various processing modes of cutting, milling, engraving, and drilling. The bridge saw features with multiple functions, small footprint, simple operation, precise cutting, quick and convenient conversion of different functions.

5 axis CNC stone cutting bridge saw adopts an automatic computer control system, which can realize manual programming or CNC programming and other programming methods to automatically complete cutting operations. It can conveniently perform horizontal cutting, longitudinal cutting, arc cutting, elliptical cutting, round cutting, arbitrary angle cutting, concave-convex edging, shaped cutting, special-shaped processing and more occasions with powerful functions.

Stone CNC bridge saw is equipped with 650nm & 50mw infrared marker, which are suitable for long-distance positioning and harsh working environments. The infrared marker uses original laser diodes and optical lenses. Long service life, good stability, constant output power, small size, easy installation, and continuous lighting for a long time, which can effectively ensure the stability and service life of the product.

The infrared marking device has the characteristics of large light angle, clear light, high straightness, low divergence, good collimation, strong industrial applicability, adjustable focus or fixed focus.

We can make a fixed focus and a red-ray laser with adjustable thickness. Customers can adjust the focus according to various requirements.

5 Axis CNC Stone Cutting Bridge Saw Applications

The 5 axis CNC bridge saw is mainly used for cutting granite, marble, slate, man-made stone, and micro crystal stone. PLC (Program Logical Controller) controlled with cutting dimensions set by terminal input. The control board with operation buttons, programmer and liquid crystal display on it, make operator easily to control the machine from the sawing area when the stone is being positioned.
