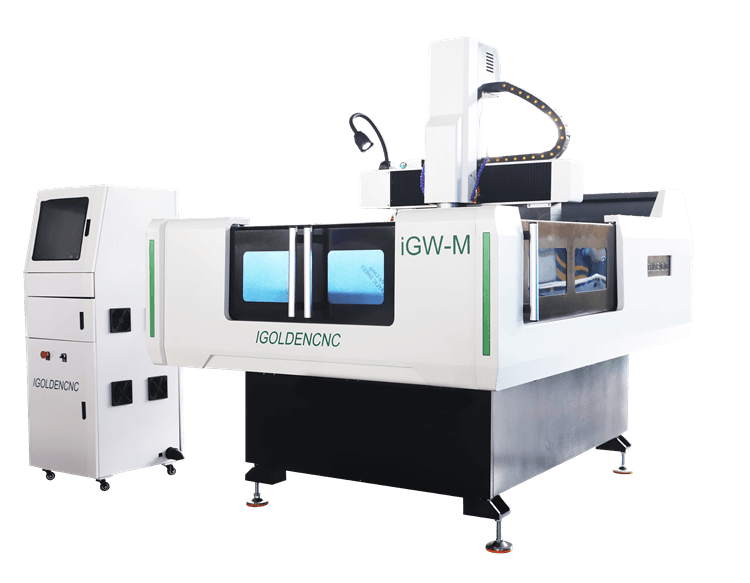

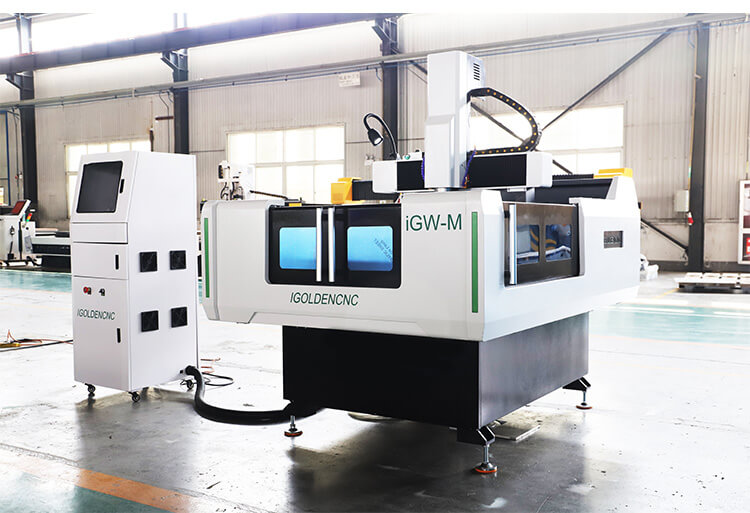

Small Hobby Metal CNC Machine iGW-MS
Mini CNC Wood Route Video
Desktop CNC Milling Machine Features:
- Strong adaptability and flexibility for processing parts. It can process parts with particularly complex contour shapes or difficult to control size. For example, mold parts, shell parts, etc.
- The CNC metal milling machine can process parts that cannot be processed by ordinary machine tools. For instance, the complex curved parts described by mathematical models, three-dimensional surface parts.
- High precision, stable and reliable processing quality. The pulse equivalent of the CNC milling equipment is generally 0.001mm, and that of a high-precision CNC system can reach 0.1μm. In addition, the numerical control processing also avoids the operator’s operational errors.
- The high degree of production automation can reduce the labor intensity of the operator. It is also conducive to the automation of production management.
- High production efficiency. It generally does not need special fixtures. When replacing the workpiece, it only needs to invoke the processing program, clamping tool and adjustment tool data stored in the CNC device. This greatly shortens the production cycle.
- The CNC metal milling machine and wood milling machine have extensive use in various industries. Like automobile, molding, furniture, construction, decoration, and other industries.
Small CNC Milling Machine for metal Parameter
| Technical indicators | parameter |
| Model | iGW-MST |
| Operating stroke | 800*800*300mm |
| Control system | SYNTEC+handwheel 6B-E/21MA-E |
| Bed | Welded bed |
| Spindle | 5.5KW/7.5KW water-cooling |
| Guide rail | Taiwan Hiwin 25 |
| Screw | Three axis 32 lead screw |
| Motor | Yaskawa 850W or Delta 1.3KW |
| Table | Cast iron countertop |
| Cabinet | Built-in cabinet+cantilever |
| Oiler | Memory oiling |
| Inverter | Fuling |
| Tool setting | Automatic tool setting |
| Blank speed | 0-30m/min |
| Working speed | 0-10m/min |
| Working accuracy | ≤±0.05mm |
| Dimensions | 2100*2800*2100mm |
| Packing size | 2250*3000*2200mm |

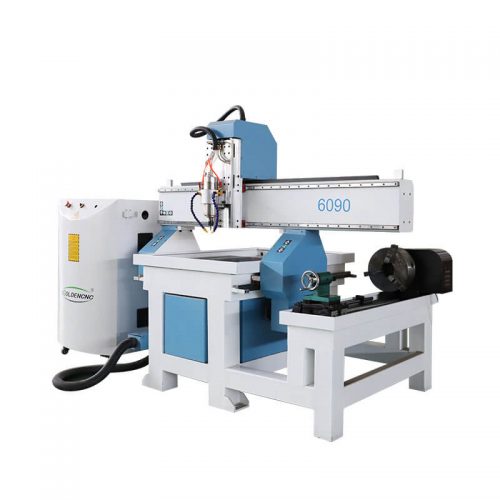

| Rotation axis | Opention |
| Tool Changing | Disk tool change |
| Oil mist system | Oil mist pump |
We offer customized services according to your requests such as the working area and specifications.
CNC Metal Milling Machine Applications:

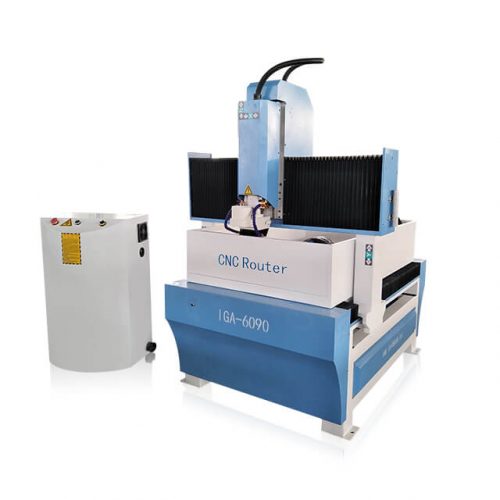

Hobby CNC routers are widely used in: small business, small shop, home business, home shop, craftsman, hobbyist, advertising, woodworking, signs, logos, letters, numbers, arts, crafts, building models, emblem, badge, display panels, furniture, and decorations.

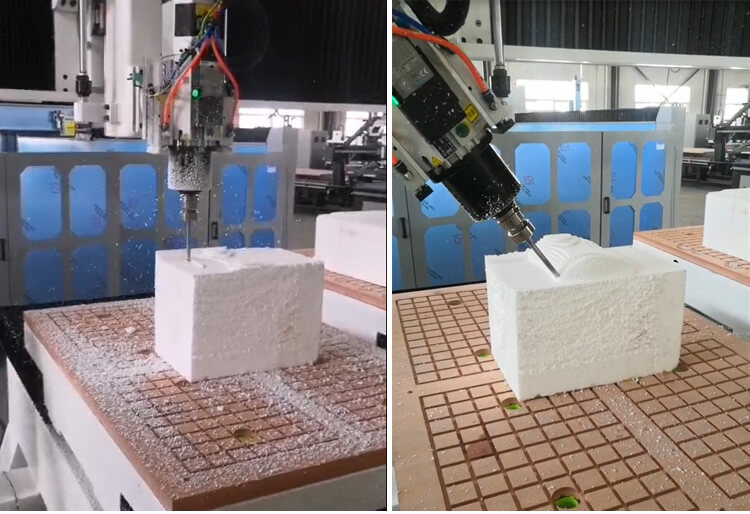

1. It is suitable for machining compactly all sorts of materials such as brass, steel, iron, copper, aluminum, foam, wood, and plastics.
2. It is widely used in shoe mould, drop mould, automotive, injection mould, ironware mould and other mould industries.
3. The metal milling machine is especially designed for machining molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface’s sleeking of large size molds.
Contact Us Today to Get Price!
Reviews
Germany W********h
I have never seen something so perfect like this in my life, I am Junior Mechanical Engineer, I work as a Draughtsman. I love designing and will like to own a business in the nearer future.
Canada J******o
The CNC kit builds OK. I bought this machine a few months ago to make cabinet doors and cut rubber gaskets, and I finally got around getting up and running during the holidays. It is fascinating overall, all-in-one CNC router and knife system combo, so I would recommend it.
Australia H*******m
I am happy with the CNC drilling machine quality. It works great. Laser recognition makes the work simpler. Very good customer service with this company. Answered my questions quickly.
Australia K****l
I searched many CNC suppliers, finally choose iGOLDENCNC because of the good after sales service and machine quality. Now, I have received the machine already. All good. Good working for door making. After sales service is excellent, fast reply.
Algeria L****y
Very accurate works well with the software. I am looking forward to using this machine for many years to come. It was well worth the investment and it is an engineering marvel. I will highly recommend to anybody in the business of cabinet making.
America N*******c
The machine works very well in the jobs we are having. The operation of this machine is simple. We are so happy with the purchase. Hope I will get my second purchase from iGOLDENCNC.

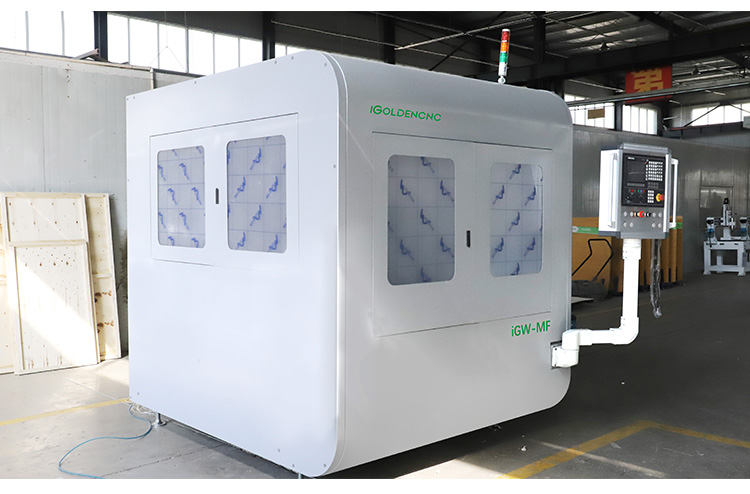

A CNC milling machine is a CNC machine that uses a milling cutter/end bits to mill a workpiece. Processing materials include metal, wood, plastic, acrylic, etc. By changing end bits, you can mill different materials and get different efficiency and cutting edge. The CNC mill for sale with high efficiency can mill planes, grooves, gear teeth, threads, and spline shafts. It can also process more complex profiles and is widely used in machinery manufacturing and repair departments. The CNC milling machine for sale falls into two categories: without tool magazine and with tool magazine. The milling machine with a tool magazine is also called a machining center.
First, operators need to formulate processing technology and select processing parameters according to the technical requirements of the part shape, size, precision, and surface roughness. Then input the compiled processing program to the controller through manual programming or automatic programming with CAM software. After the controller processes the program, it sends instructions to the servo device. The servo device sends a control signal to the servo motor. The spindle motor rotates the tool. And the servo motors in X, Y and Z directions control the relative movement of the tool and the workpiece according to a certain path. Now the CNC mill for sale realizes the cutting and milling of the workpiece.

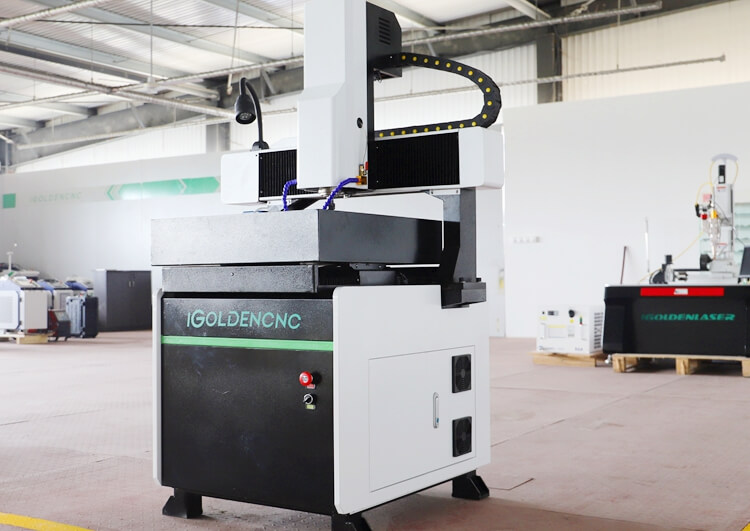

Different specifications and configurations lead to different milling machine prices. The small-sized and simple-configuration milling machines tend to be cheap CNC mill machines. For instance, the small milling machine, hobby CNC milling machine, desktop CNC mill, mini CNC mill and hobby CNC mill for sale. The price of cheap CNC mill machines ranges from $2,000 to $10,000 on average. However, high-configuration CNC milling centers may cost $10,000 to $40,000. It is more expensive than the cheap CNC mill.
Since the milling machine is available in many types, you need to choose an appropriate one according to your specific needs.
As said above, according to different feeding ways, there are table moving CNC and gantry moving CNC. For milling of wood, soft metal, plastic, acrylic, MDF, plywood, the best choice is gantry moving CNC. If you need a mill for milling metal workpieces, you may consider the CNC metal milling machine. In case that you are looking for a mill for home use, you can choose a desktop CNC mill, mini CNC mill, hobby CNC milling machine, or hobby CNC mill. For mass production of large factories, the CNC 3 axis milling machine or 5 axis milling machine could be a good choice.
We offers brand new and high-efficiency CNC 3 axis milling machine and 5 axis CNC milling machine. These machines can solve the milling requirements for small and big businesses. We don’t recommend buying a used milling machine. Because except for the cheap price, a used milling machine has no advantages. You may also take the risk of maintaining and repairing soon after use. However, there are no such concerns if you buy a new milling machine. Blue Elephant will provide complete customer services and solve all your problems throughout the purchasing process.
