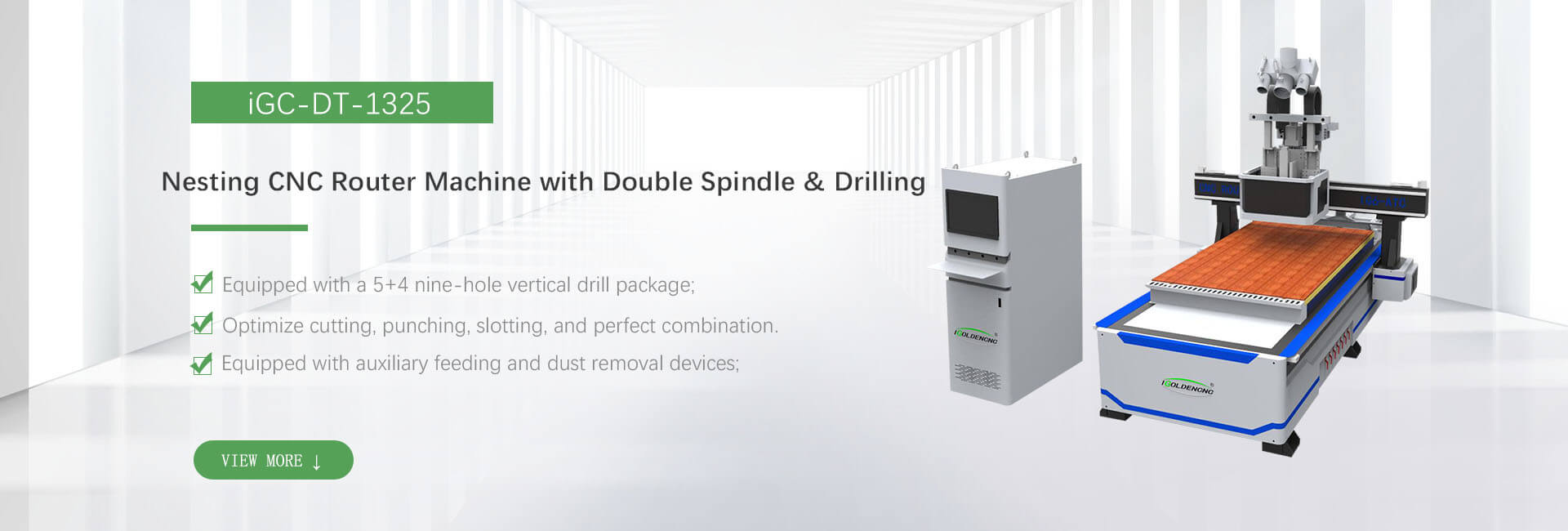

Nesting CNC Router Machine with Double Spindle & Drilling
Are you looking for the most suitable CNC woodworking cutting machine? Please take a look at iGOLDEN CNC’s latest CNC woodworking cutting machine, it may be your best choice for CNC woodworking. ATC wood furniture CNC router machine 5+4 boring head is very suitable for processing custom cabinet doors, wooden doors, solid wood furniture, panel furniture, office furniture, windows, tables, and chairs. Save time, effort, and worry. Material, no manual intervention, minimize error rate and ensure order quality.
CNC woodworking cutting machine adopts the most popular 5+4 vertical type boring head. There are many types of boring heads for CNC cabinet-type machine tools, with vertical spindles, horizontal spindles, or cutting units. The independent spindle boring head is equipped with a series of remote control solenoid valves, only one connection is required, and there is no need to wire each individual spindle.
Nesting CNC Machine iGC-DD-1325 Video
5+4 vertical drilling device
wood cnc nesting machine
Italy PEK square guide rail
Press material + push material + vacuum adsorption table
Automatic loading and unloading platform
Highly automated discharge solution with automatic loading and unloading system. The entire work cycle of loading, nesting, drilling, and unloading is performed automatically, thereby achieving the highest productivity and zero downtime,it can effectively improve the production efficiency of cabinets and panel furniture.
* The cutting method can be flexibly matched according to the site and output.
CNC Nesting Machine iGC-DD-1325 Video Parameter
Technical Data
| Model | iGC-DD-1325 |
| Working area | 1300*2500*300mm |
| Machine Body | Square Tube Welding Structure |
| Spindle | HQD 6.0kw Air Cooling*2+9 hole vertical drill |
| Speed Speed | 18000rpm |
| Positioning Accuracy | 0.05mm |
| Repositioning Accuracy | 0.02mm |
| Worktable | PVC Vacuum Ddsorption Worktable + L-type Positioning Cylinder + Automatic Pusher + Feeding Roller + Secondary Dust Removal System |
| Guide Rails | Taiwan HIWIN |
| Driver | Japan YASKAWA Servo Drive and Servo Motor |
| Reducer | Japan SHIMPO |
| Control System | Taiwan LNC |
| N.W./G.W. | 2700/3000kg |
We offer customized services according to your requests such as the working area and specifications.
CNC Nesting Machine Application
Furniture industry: all kinds of panel furniture, wooden doors, cabinets, solid wood furniture, cutting, and carving
Advertising industry: craft gifts, crystal jewelry, advertising signs, mini-character engraving, and cutting, etc.
Decoration industry: Acrylic, PVC, MDF, plastic, aluminum, copper, and other soft-cut sheet metal decorative engraving and milling processing
Board processing: particle board, ecological board, blockboard, medium density fiberboard, thermal insulation material, plasticized workpiece; printed circuit board. Mobile body, bowling lane; cemented carbide mixtures such as Nabite board, epoxy resin, ABS, PP, PE, etc.
