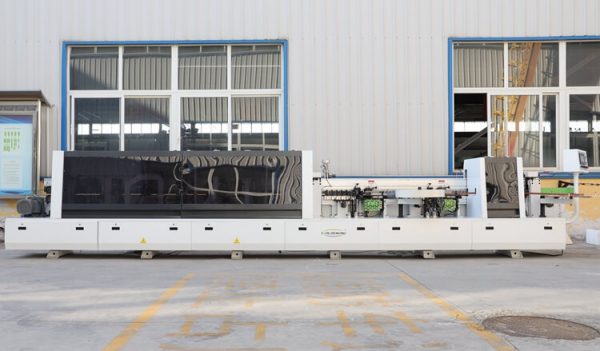

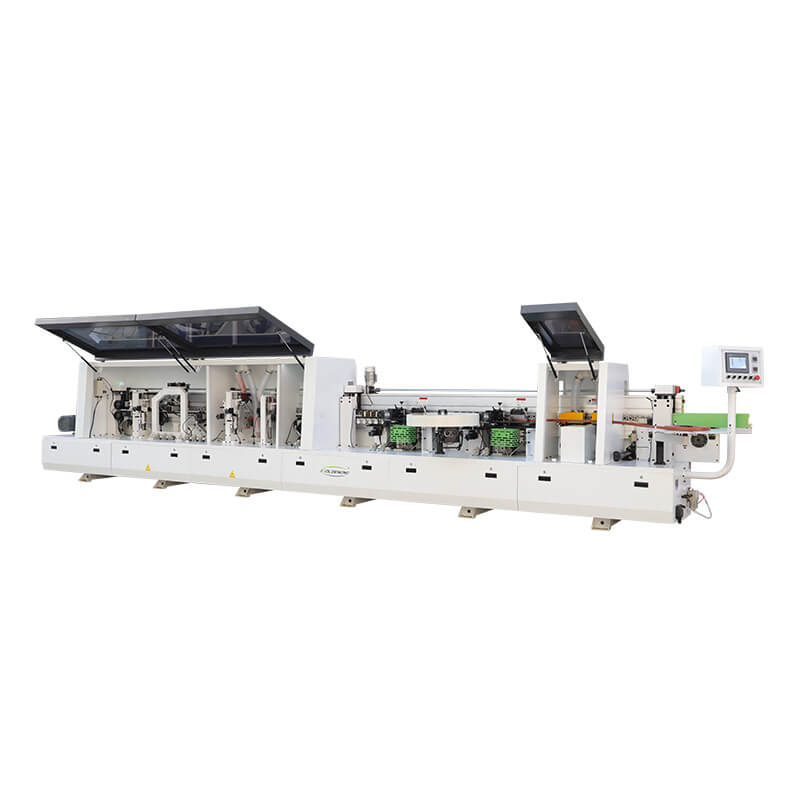

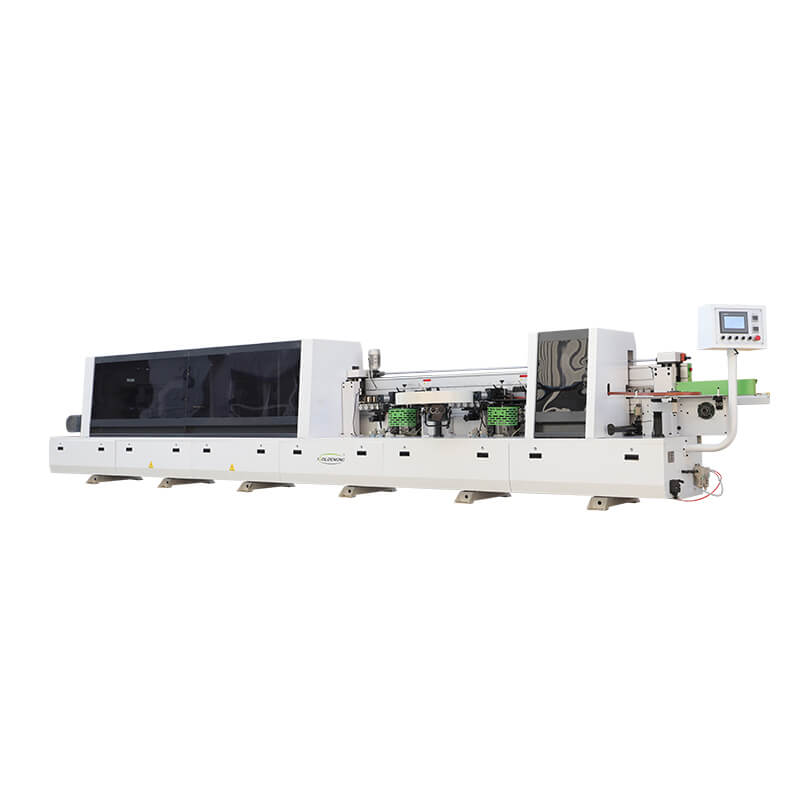

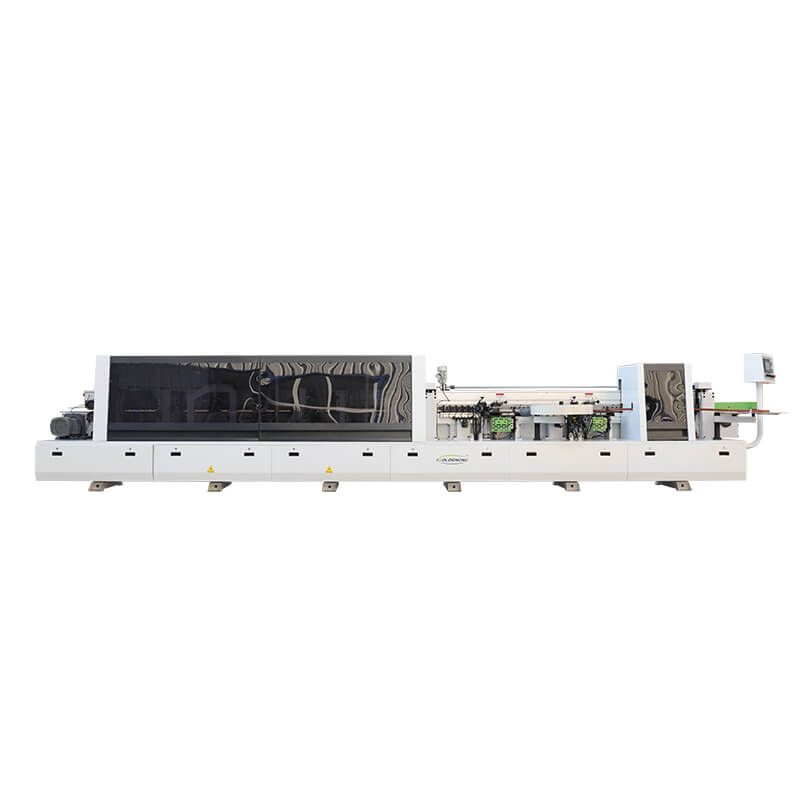

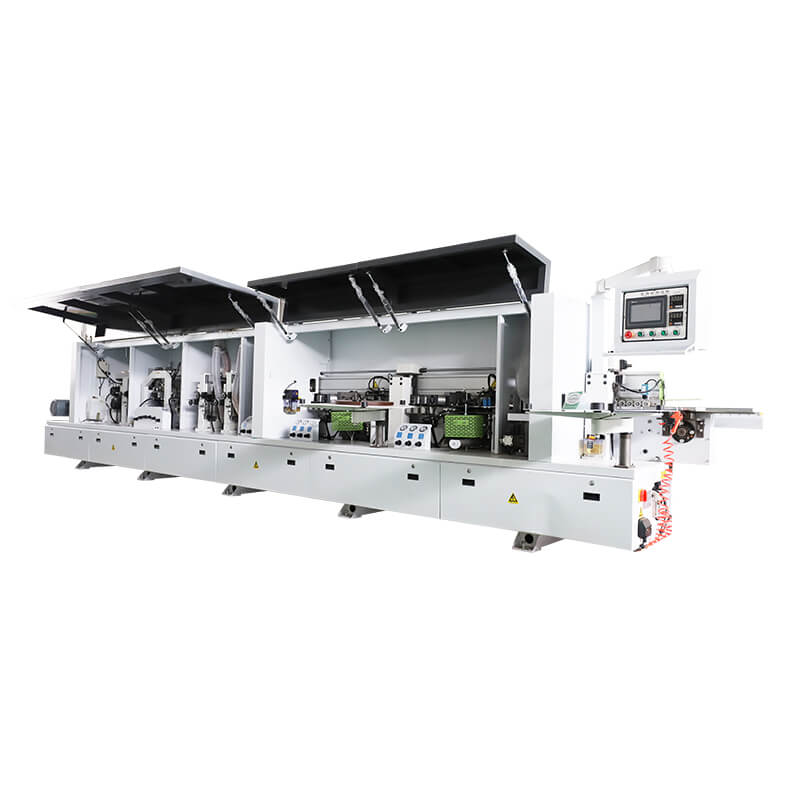

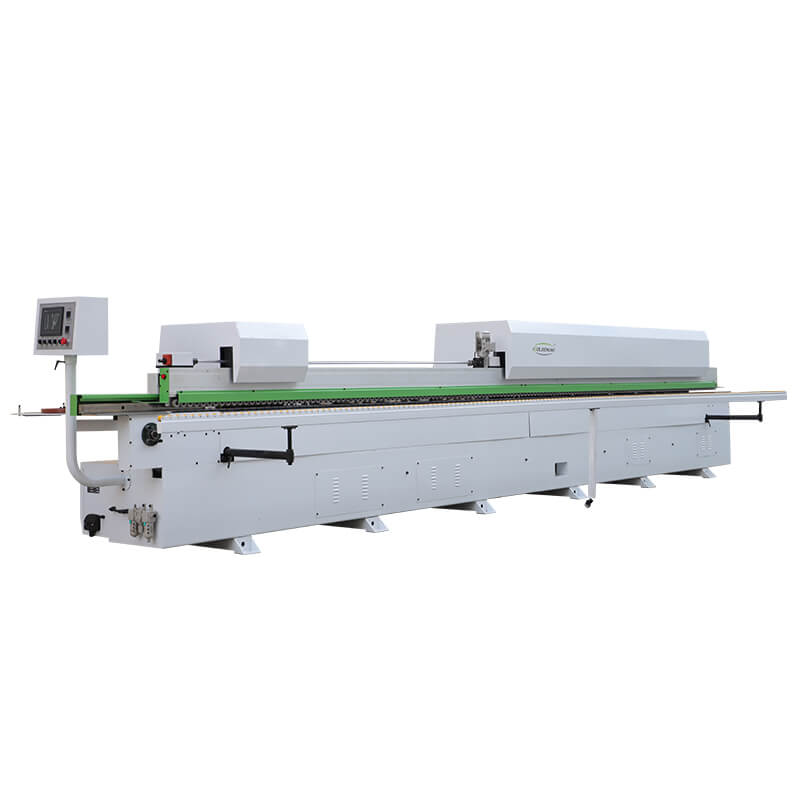

Automatic Edge Banding Machine
Automatic industrial edge banding machine is a power tool used for straight edge banding and trimming of MDF, plywood, block board, solid wood board, particle board, and polymer door panel in assembly line mass production. An industrial automatic edge bander machine is composed of the bed frame, the edge banding module and the automatic control system. It has the ability of bonding and pressing, flushing, chamfering, rough trimming, fine trimming, scraping, polishing, and additionally, pre-milling, corner rounding, tracking, and grooving can be added upon request. The industrial automatic edge banding machine is stable, reliable and durable, and the price is affordable. It is especially designed for furniture and cabinet manufacturers.
ATC CNC Router Video
Edgebanding machine Parameter
Technical Data
| Specific functions | pre-milling, gluing 1, pressing belt 1, gluing 2, pressing belt 2, end cutting, rough trimming, finishing, profiling tracking, edge scraping, polishing 1, polishing 2 |
| Sheet thickness | 9-60mm |
| Minimum processing width of sheet | ≥80mm |
| Minimum processing length of sheet | ≥120mm |
| Edge banding width | 15-55mm |
| Conveyor belt power | 3.7kw |
| Feeding speed | 15～22m/min |
| Total power | 20kw |
| Dimensions | 8100*900*1600mm |
| Weight | 2600kg |
Double glue pot
Non-sticky pot, uniform sol, cylinder control pressure roller, better tape effect.
End cutting
Through the structure of automatic profiling and high-frequency high-speed motor, the redundant edge bands before and after are cut off to ensure a smooth and smooth section.
Rough trim : The rough trimming knife is a flat knife, which is used to trim the excess edgebanding material on the upper and lower parts of the processed sheet edge band, so that the upper and lower parts of the trimmed sheet are smooth and smooth.
Fine trim : The finishing knife is an oblique repair, used to repair the excess edge banding material after rough repair on the upper and lower parts of the processed sheet edge band, and at the same time, make the natural transition between the sheet material and the edge band in an arc shape.
Scraping and Cleanning
It is used to eliminate the ripple marks (cut marks left by the trimming knife and the finishing fillet) caused by the non-linear motion cutting process of the trimming.
DEITA PLC control system
The independent LCD screen has a touch screen speed control function, and you can see the operation process of the machine more clearly, real-time monitoring, real-time adjustment, and more precise.
Pre-milling
When the edge-sealing surface of the plate is not flat, it can be milled first and then glued and pressed.
Automated Industrial Edge Banding Machine Features
1. Adopts the no-clean PUR glue pot, customers do not need to clean the glue pot, which greatly saves labor and time.
2. Equipped with a gluing machine, it can accurately apply glue to the processed sheets.
3. The six-wheel pressing banding device can press the board more precise and reliable. And the glue line is slightly non-running.
4. It is suitable for panel furniture, customized furniture, cabinets, office furniture, solid wood furniture, tables, chairs, doors and windows, wood products, decoration industry, etc.
5.All the parts are made with fine processing of high-precision CNC machining center, and this ensures the stable and high efficiency operation.
6.The structure is compact, the layout is reasonable, and the appearance is beautiful; it adopts devices such as sound insulation, dust collection port, and anti-overload.

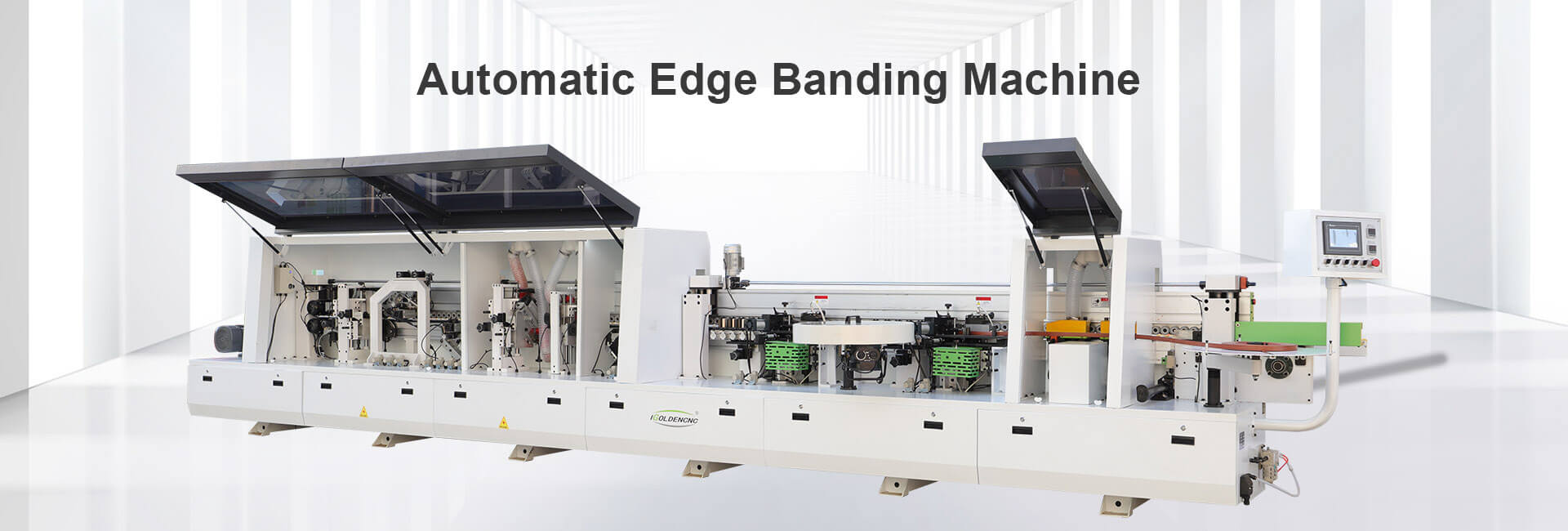

Automatic Edge Banding Machine
This machine is suitable for linear edge banding and edge banding materials of solid wood board, fiberboard, particle board and other plate workpieces.Available solid wood strips, pvc, melamine, veneer strips, etc.
Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
Contact Us Today to Get Price!
The edge bander is a power tool with automatic electrical control and programmed operation. It should be carefully reviewed when buying.
Understanding
Listening to the manufacturer’s product introduction, you can have a general perceptual understanding of the required machine from the specifications, performance, scope of use, operation method, price, service & support.
Inspection
Check to see if the appearance of the machine is in good condition. Check whether the parts are complete, watch the manufacturer’s operation demonstration video, check the bonding effect, and master the essentials of operation.
Testing
Turn on the machine for a test run. Check whether the power supply and air supply lines are smooth and sensitive, and whether it runs smoothly and without noise. On this basis, the user decides whether to buy or not.
Portable Handheld Edge Bander
The portable handheld edge bander can be applied to the operation of plate straight and curved irregular borders. When the machine is installed with the fixed bracket accessories, its use method is similar to that of the traditional curved line manual edge bander. It is suitable for banding of various materials, including melamine (impregnated) paper, veneer, plastic (PVC or ABS).
Semi-Automatic Edge Bander
The semi-automatic edge banding machine is suitable for straight edge banding of MDF, blockboard and particleboard. Its capabilities include gluing, sealing, upper and lower trimming, and polishing. It is an automatic production line that can complete the conveying of panel, edge banding, upper & lower milling, and polishing at one time.
Automatic Edge Bander
The automatic edge banding machine is suitable for straight banding & trimming of solid wood, fiberboard, particleboard, MDF, plywood. The materials can be solid wood strips, PVC, melamine, and veneer. Its capabilities include pre-milling, gluing, banding, leveling, roughing, finishing, profiling, scraping, polishing, grooving.
The edge banding machine price varies greatly for different machine models. Besides, the functions, specifications, and manufacturers also have an effect on banding machine price. Generally speaking, the automatic edge banding machine price is far higher than that of the manual models. The automatic edge banding machine price ranges from $10,000 to $30,000. While the manual edge bander may only cost about $400 to $3,000.
The wood edge banding machine is mainly used for edge banding of medium-density fiberboard, wood board, solid wood board, particleboard, etc. That’s the reason why we also call the machine plywood edge banding machine, MDF edge banding machine, etc. In terms of wood materials, it can complete birch edge banding, maple edge banding, walnut edge banding, and other wood veneer edge banding work.
The fully automatic edge banding machine has extensive use in middle and large-sized furniture making factories. It has such advantages as stable operation, high automation level, reliable performance, and affordable price. Furthermore, the automatic edge bander machine is an indispensable CNC machine in many furniture production lines.
The manual edge banding machine is good at banding both straight and irregular edges. It is the best edge banding machine for small shops. Besides, it is possible to move the manual edge bander machine from one workplace to another for on-site banding operation.
