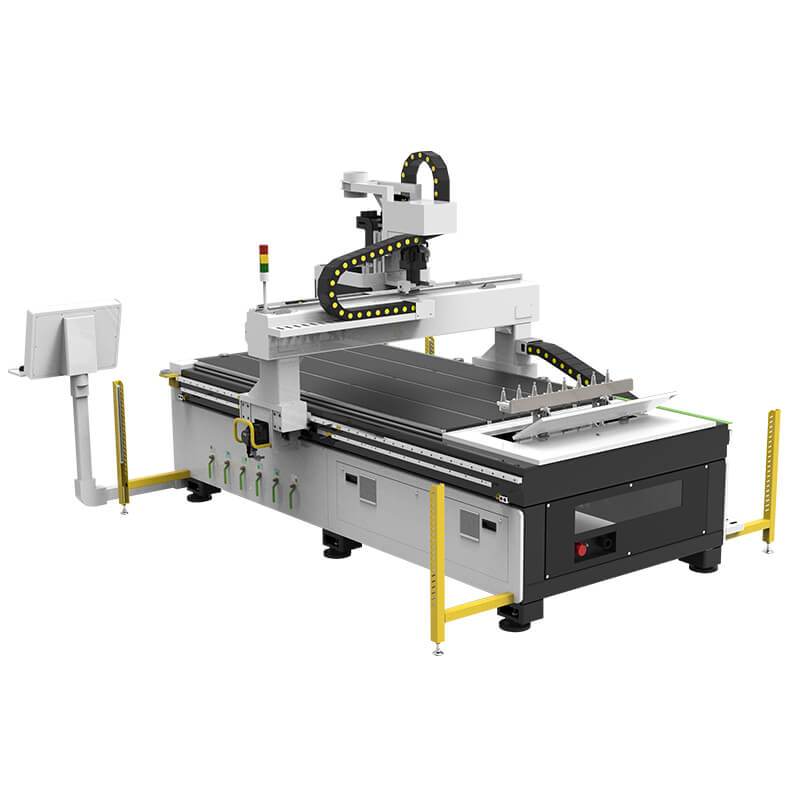

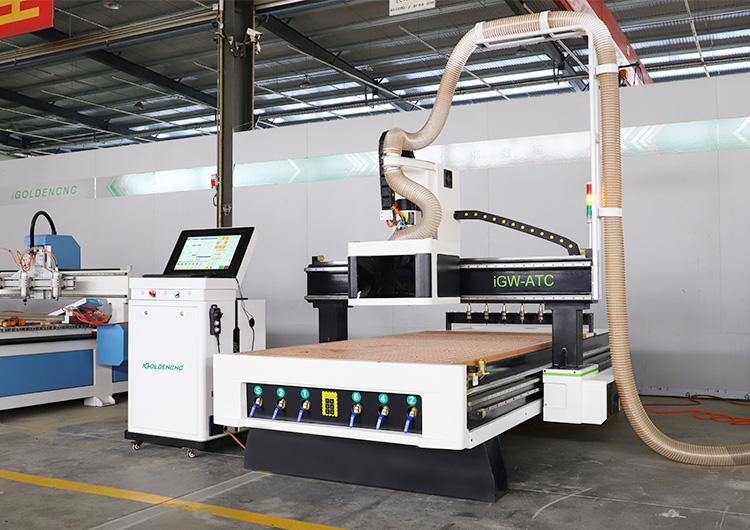

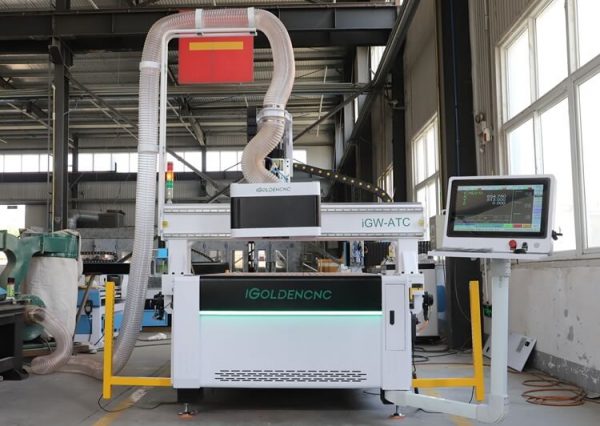

1325 ATC CNC Machine

1325 ATC CNC machine reduces operation time and ensures consistent, high-quality results in heavy-duty applications. Ideal for woodworkers and manufacturers, it provides a top-quality, time-saving solution in professional woodworking. For businesses seeking a reliable CNC machine for sale with high precision and versatility, this model is a powerful investment.

Atc CNC Machine

An ATC CNC Machine (Automatic Tool Change CNC Machine) is designed for stability and durability, capable of handling a wide range of materials, including wood, metal, plastic, and composites. This feature allows the machine to switch between different cutting tools automatically during the machining process, significantly improving productivity and efficiency.

ATC CNC router machine has unique advantages in the field of woodworking. The feature of auto tool change allows the machine to complete multiple processes at one time, such as engraving, cutting, drilling, hollowing, etc.ATC CNC router machine is an intelligent CNC machine with auto tool changer and ATC spindle. The auto tool changer is loaded with 8 different tools. According to the system settings, the machine can complete the automatic tool change in only a few seconds, which greatly improves the work efficiency.

ATC wood engraving machine is especially suitable for furniture manufacturing. For customized furniture, it is usually necessary to engrave different types of patterns on the same plate. ATC wood engraving machine can quickly complete the processing of various design patterns.

ATC CNC Machine Video

ATC CNC Machine For Wood Parameter

Working Area	13002500/ 15003000/ 20003000/20004000mm
Z Axis Height	250mm
Positioning Accuracy	0.03mm
Re-positioning Accuracy	0.02mm
Body Structure	Heavy-duty Welding Body
X, Y AxisStructure	Linear Guide Rail,Gear Rack
Z AxisStructure	Linear Guide Rail,Screw
Max. Running Speed	50000mm/min
Max. Working Speed	30000mm/min
Spindle	9.0kw Air-cooling Spindle
Spindle RPM	24000rpm/min
Working Voltage	AC 220V/ 380V,50-60Hz
Machine Weight	1800/2000/2300/2500kg

If you need more detailed information, please inform us as soon as possible.

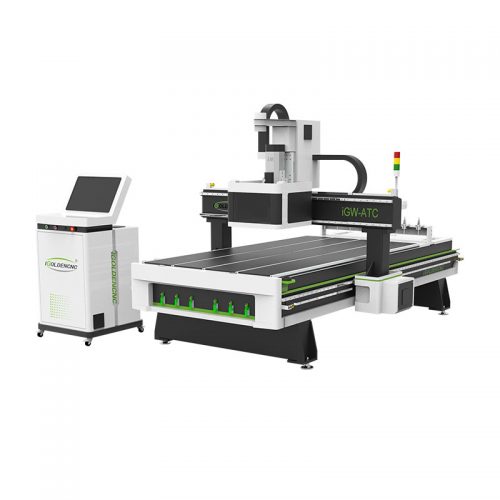

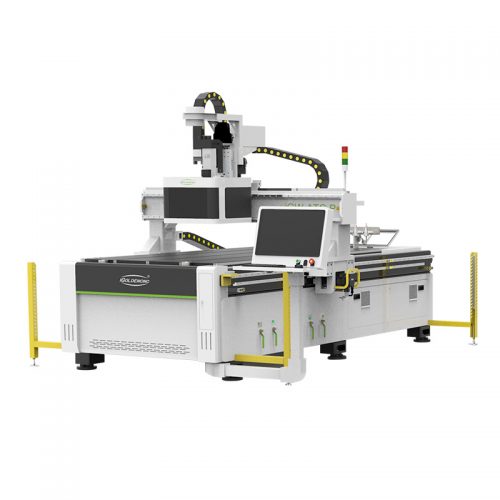

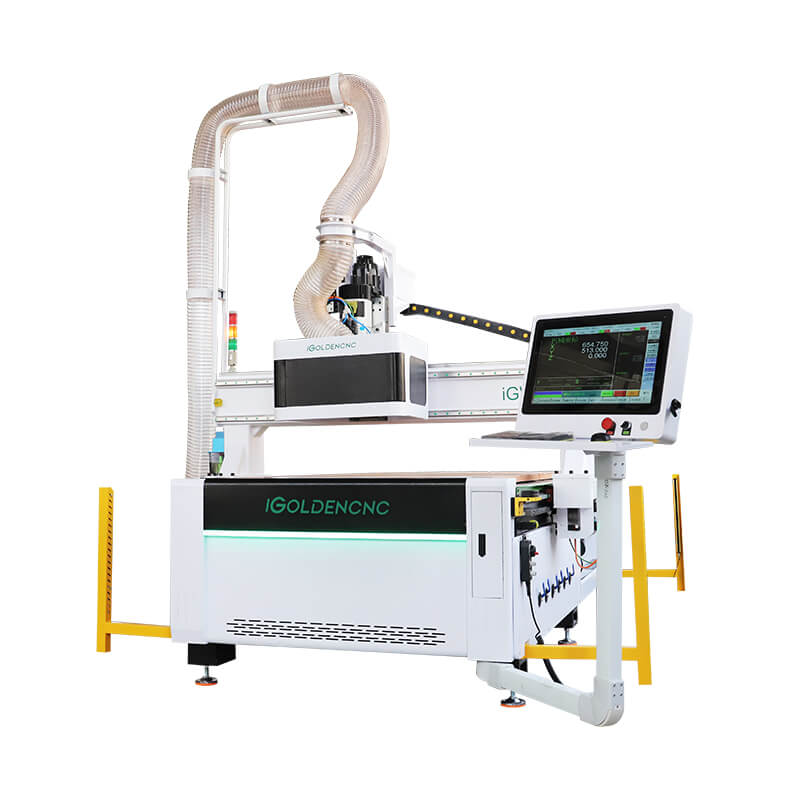

ATC CNC Router with automatci tool changer

With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.

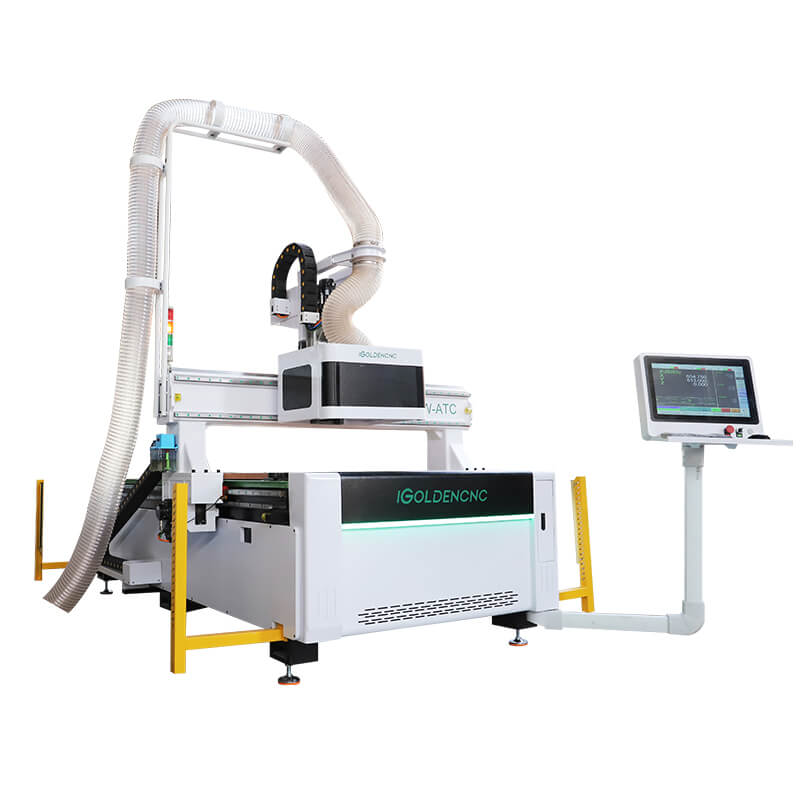

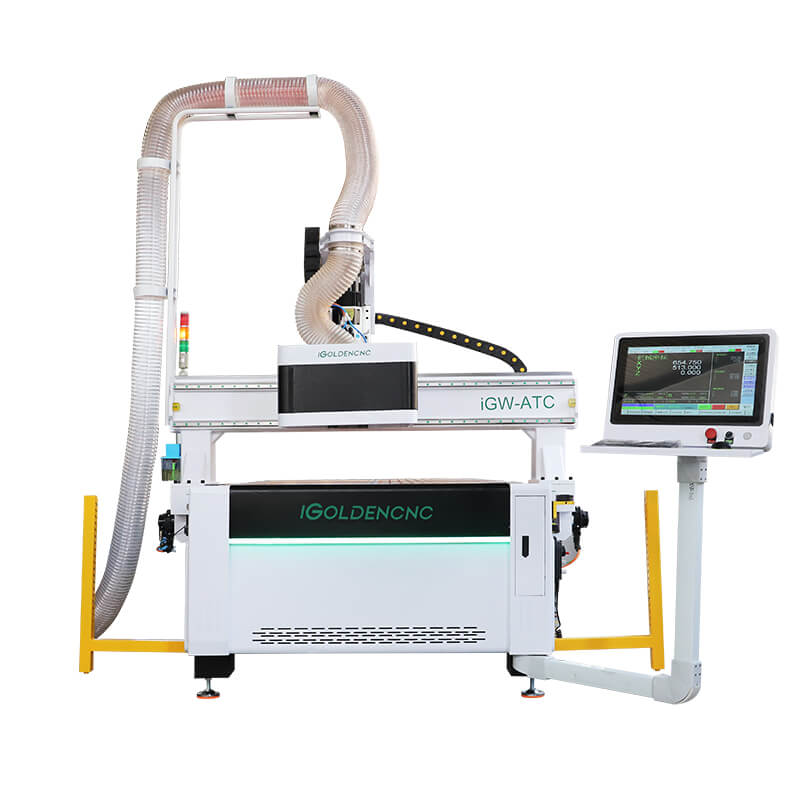

21 inch screen-Integrated cabinet

Taiwan Syntec control system

Integrated cabinet Easy to coordinate, can be rotated to a suitable position for operation

T-slots are added inside and outside the workbench.

Grating safety protection

In order to avoid damage to man and machine, optional grating protection device.

Features of Linear ATC CNC Machine:

Increased Efficiency: Reduces manual intervention, allowing for continuous operation and increased production rates.

Cost-Effectiveness: Reduces labor costs and minimizes waste, leading to lower operational costs over time.

Enhanced Productivity: The automatic tool change feature significantly speeds up production cycles.

Great Versatility: It can handle a wide variety of tools, allowing the machine to perform different machining operations such as milling, drilling, and turning. This makes it possible to process complex parts with diverse tooling requirements on a single machine.

High Precision: The automatic tool change system ensures accurate tool positioning, which helps to improve the machining accuracy and repeatability. It reduces errors caused by manual tool changes and guarantees consistent quality in multiple machining operations.

Application

1. Wood Furniture Industry: Wave Plate, antique furniture, wooden door, screen, craft sash, composite gates, interior doors, sofa legs, computer tables, etc.

2. Advertising Industry: advertising identification, sign making, acrylic engraving and cutting, crystal word making and other advertising materials derivatives making.

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts.

4. Architectural models: engraving fine window, fencing and wall patterns, etc.

Wood CNC Router ATC FAQ

What is ATC CNC Router

CNC router tool changer machine is a kind of advanced CNC engraving machine which is equipped with the independent ATC system. ATC, also known as automatic tool changer, is a device specially used for tool changing, loading and unloading between the ATC spindle and the tool magazine.

The ATC system can automatically replace the required tools during the processing of workpiece without suspending the running. When processing complex patterns, it can change different tools in accordance with the program, thus greatly accelerating the work efficiency and improving the processing quality.

Automatic tool changer (ATC) CNC Router machine is suitable for the processing of various complex products or a variety of processing.

Types of ATC Systems

Linear ATC
- Tools are arranged in a straight line.
- Suitable for machines with fewer tools and smaller footprints.
Carousel ATC
- Tools are arranged in a circular carousel.
- Ideal for machines requiring a larger number of tools.

How an ATC CNC Machine Works

Design Input
- A design is created in CAD software and converted into a G-code file for the CNC machine.
Tool Assignment
- Tools are assigned specific tasks in the software, and their positions are mapped in the tool magazine.
Automatic Operation
- The machine performs tasks like cutting, drilling, or engraving.
- It automatically switches tools from the magazine as per the program instructions.
Final Output
- The completed workpiece is removed, ready for inspection or further processing.

ATC CNC Router Machine Price

The ATC CNC router machine is composed by different modulars, such as structure, driving system, transmission system, cutting system, HSD CNC router tool changer spindle, nesting software & control system, etc. So, the price differs much depending on actual requirements and configurations. Generally, the ATC CNC router price ranges from $11,000 to $30,000. Besides, some extra charges & fees will have to be taken into consideration for overseas customer, including shipping costs, tax, customs clearance, etc. If you want to buy cheap cnc plasma cutter, please feel free to contact us for price detail.
