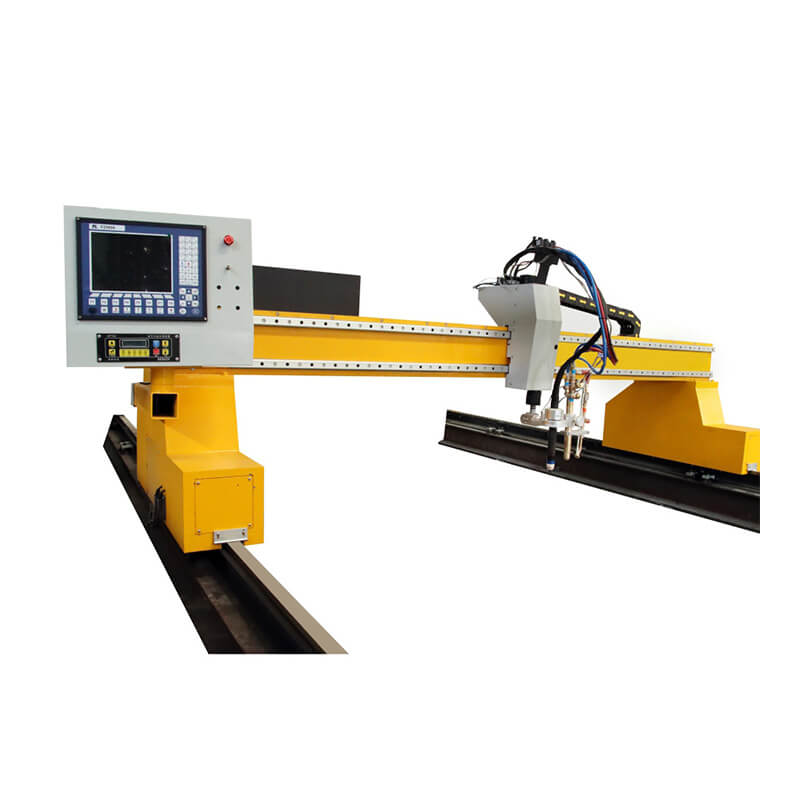

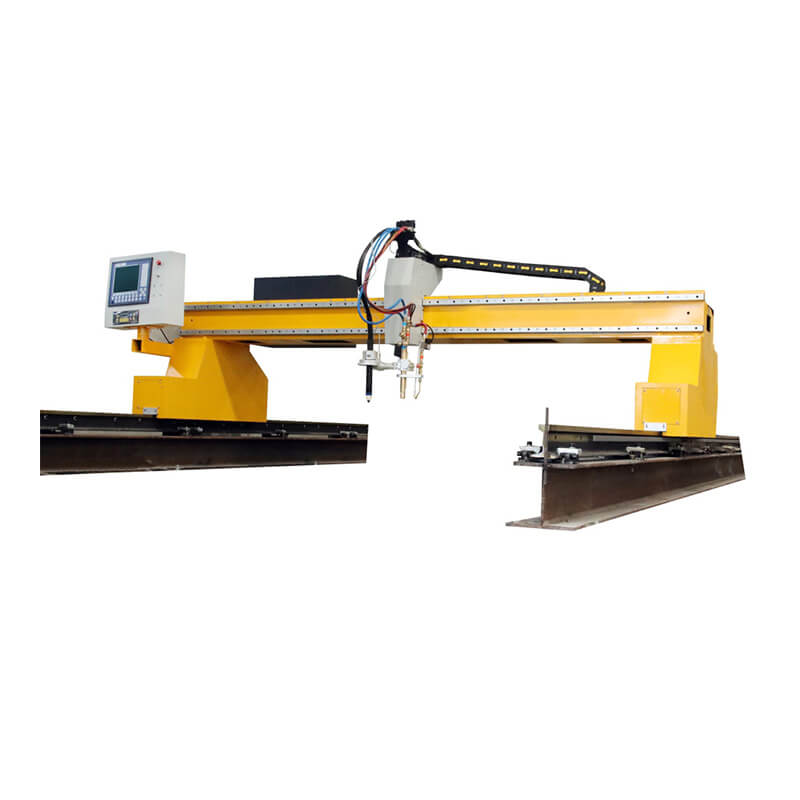

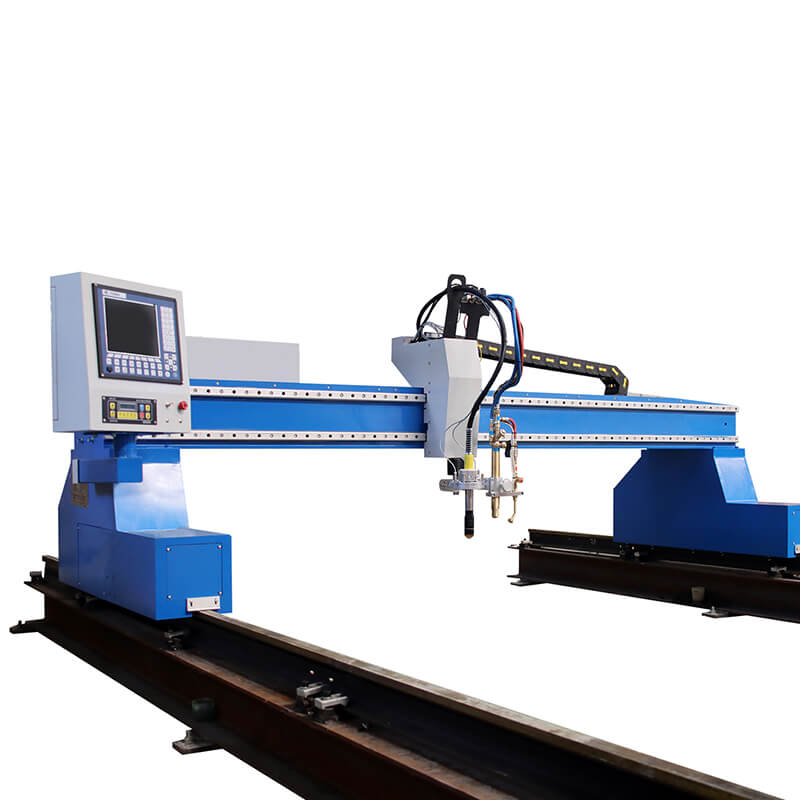

Gantry Cnc Plasma Cutting Machine
Gantry Pipe and Plateintersection cutting machine can achieve two kinds of tube and plate cutting method, can greatly save customers cost.
The machine can cut a plurality of cylinder with different direction, different diameter of intersecting line hole, meet the vertical axis and axis condition branch director and no eccentric. The machine can also cut cylinder intersection line at the end of branch pipe, meet the pipe axis and the eccentric and no eccentric director axis intersecting condition.
Gantry CNC Plasma/Flame Cutting Machine Video
Flame cutting
Anti-tempering device, automatic/manual integrated height automatic ignition device.
Plasma cutting
Anti-collision device, arc voltage height adjustment device (automatically adjust the distance according to the height of the plate)
Dual-axis guide rail
Longitudinal 7-level high-precision rack
Advanced Plasma Power Supply
It adopts China’s well-known industrial brand Huayuan industrial plasma power supply.
Precise cutting, no burrs, and small bevel.
Energy-saving, low consumption, more stable performance.
Fangling F-2300A CNC Operating System
Arc voltage height controller
Digital control, easy to learn and operate, anti-high frequency electromagnetic interference, stable performance.
Gantry CNC Plasma Cutting Machine Application
Gantry cnc plasma cutting machine is specially designed for sheet metal fabrication, it is characterized of high automation and efficiency, easy operation and long service time.
Applicable Industries
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building, Military Industrial,Wind Power,Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers,Textile Machinery,Environmental ProtectionEquipment,Ect.
Applicable Materials
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel,Stainless Steel,Alloy Steel,
Gantry CNC Plasma/Flame Cutting Machine Parameter
| The main technical parameters | |
| Lateral gauge (mm) | 3000mm |
| Longitudinal gauge (mm) | 8000mm |
| Flame torch group | 1 |
| Plasma torch group | 1 |
| Lifting device stroke | 180mm |
| Drive System | Leadshine |
| Drive mode | Bilateral drive |
| Effective cutting width (mm) | 2400mm |
| Effective cutting length (mm) | 6500mm |
| Flame cutting thickness (mm) | 6mm-200mm |
| Plasma cutting thickness | Depends on plasma size |
| Machine idle speed（mm/min） | 6000mm-10000mm |
| Flame cutting speed（mm/min) | 50-800mm/min |
| Surface cut roughness | Ra12.5-25μm |
