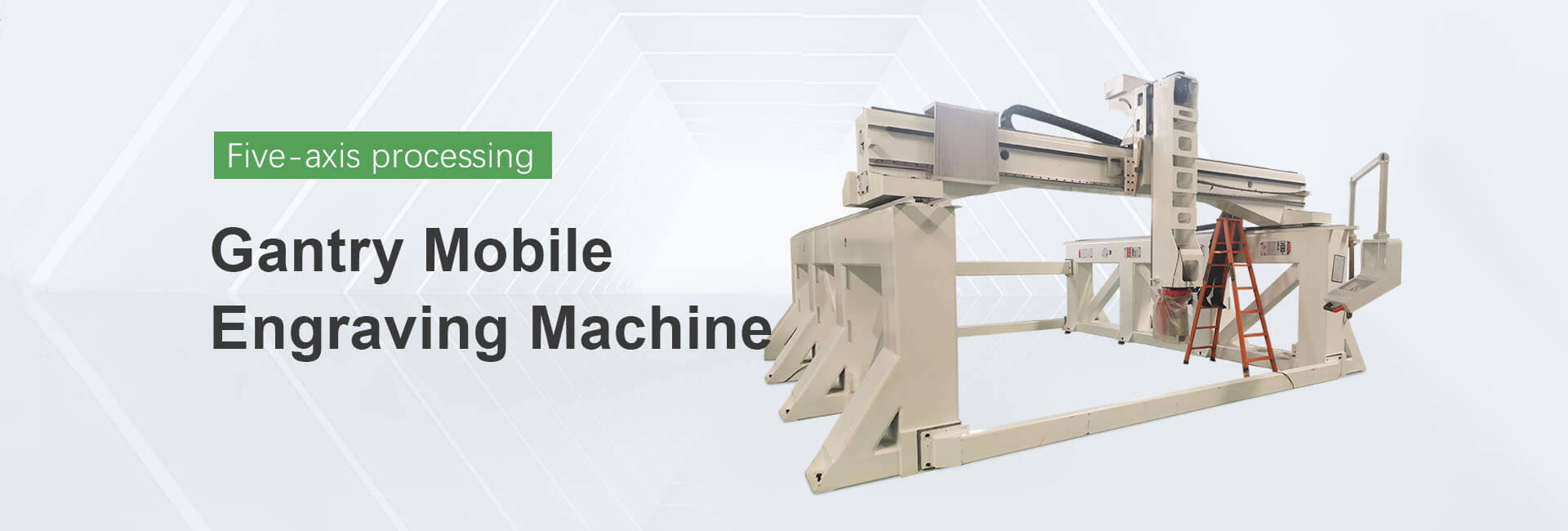

2030 Gantry Moving 5 Axis CNC Router
5-axis CNC Router Video
Spainish 14-17kw 5-axis ATC Spindles
Disc Tool Bank
Taiwan HINWIN rail
Drive rack
5-axis CNC Machine Parameter
Technical Data
| Model | iGW-5AM-2030 |
| Type | Gantry moving 5 axis cnc router |
| working area | 2000*3000*1000mm |
| Table structure | Cast iron or welded steel plate |
| Transmission | Helical rack on X Y axis, Taiwan TBI ball screw for Z axis |
| Guide Rail | Three axis #30 Taiwan guide rail |
| Tool Change | 12 tool changes |
| Spindle | Spanish akemd five axle head and 14.4-17KW spindle |
| Control System | Taiwan SYNTEC control system |
| Servo Motor | Japan YASKAWA |
We offer customized services according to your requests such as the working area and specifications.
Applications Of 5 Axis CNC Router Machine
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;

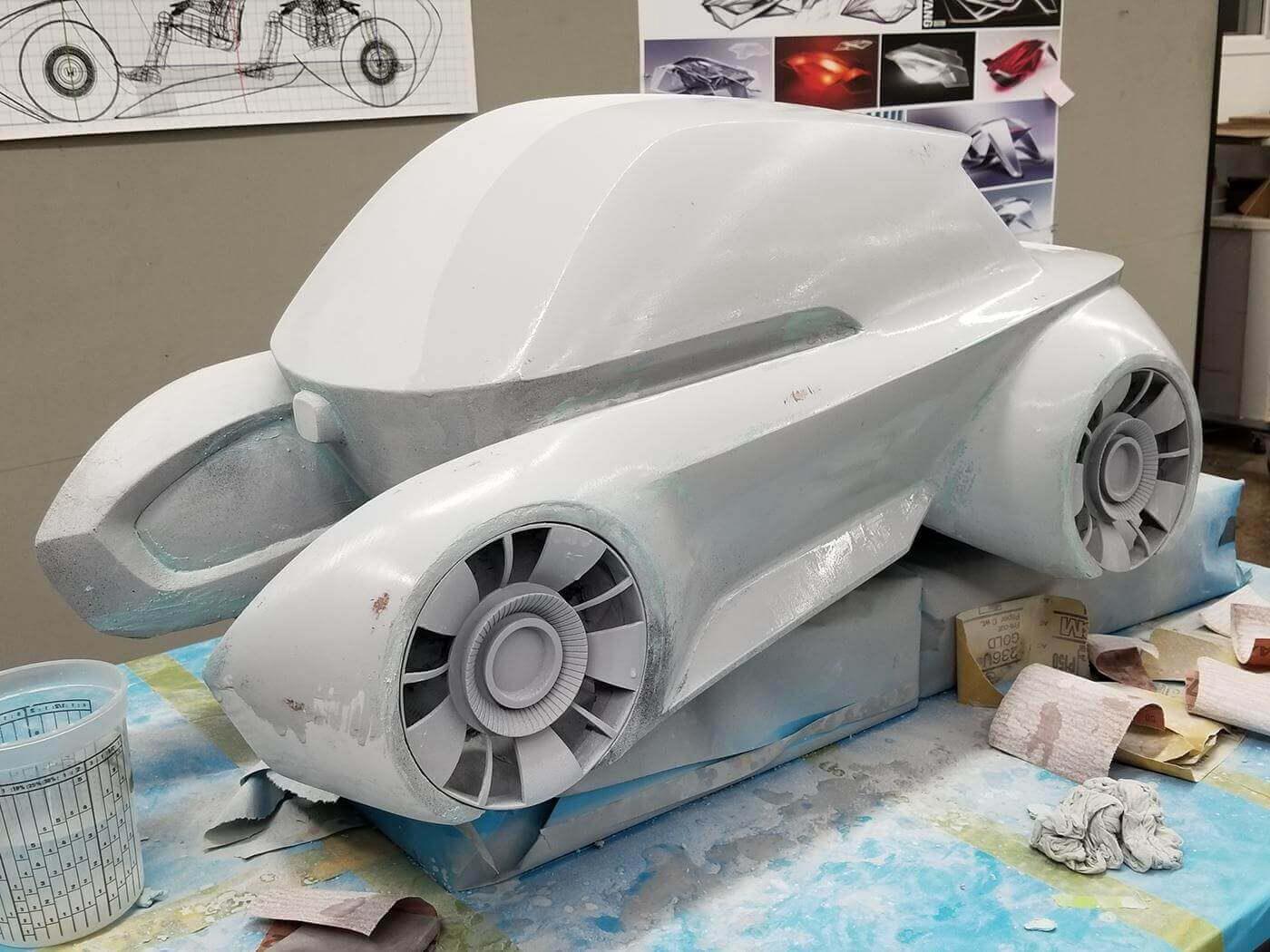

Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;

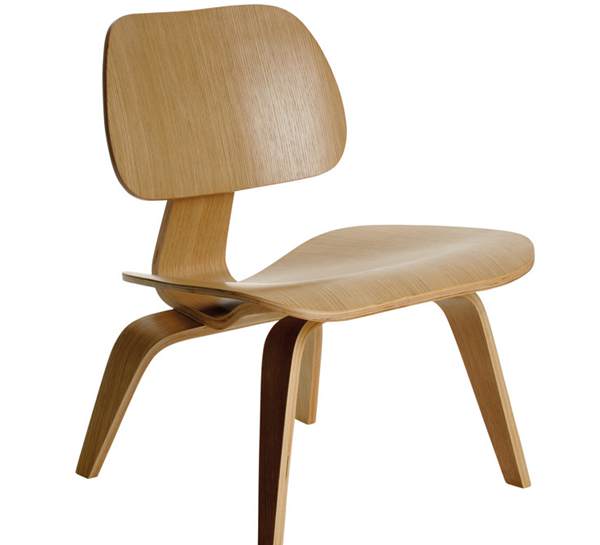

Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
Features Of Table Moving 5 Axis CNC Machine:
1. This machine is with double table moving in work so that can improve the working speed
2. It is very good for small parts 5D products making like craft, wood mould, aluminum mould, foam mould etc
3. Two tables working together same project and working precision could be +-0.05mm. Z axis is adopted TBI ball screw with diameter 35mm very strong
4. Syntec control system Intelligent processing cross-border protection function can prevent mechanical collision due to excessive processing of design file.
5. Z-axis travel can be heightened to 2.1 meters, so that very suitable for processing large-scale three-dimensional surface..
6. Adopt TAIWAN Syntec 8axis numerical control system, high machining accuracy and high speed.
7. The Japan THK rails with 30 size. and the Germany original rotating arm ensure the accuracy and strength of the mechanical
8. Advanced Syntec system with intelligent program that you no need prepare separate post processor just make a suitable 5 axis design in softare then input Syntec system then will be ok.
9. Economic 5 axis rotate spindle motor 10kw which is good for aluminum,wood,foam. pvc,plastice mould making
10. Heavy structure frame with quality steel tube after hot processing which is better stabilization and good rigidity
Contact Us Today to Get Price!
Reviews
Germany W********h
I have never seen something so perfect like this in my life, I am Junior Mechanical Engineer, I work as a Draughtsman. I love designing and will like to own a business in the nearer future.
Canada J******o
The CNC kit builds OK. I bought this machine a few months ago to make cabinet doors and cut rubber gaskets, and I finally got around getting up and running during the holidays. It is fascinating overall, all-in-one CNC router and knife system combo, so I would recommend it.
Australia H*******m
I am happy with the CNC drilling machine quality. It works great. Laser recognition makes the work simpler. Very good customer service with this company. Answered my questions quickly.
Australia K****l
I searched many CNC suppliers, finally choose iGOLDENCNC because of the good after sales service and machine quality. Now, I have received the machine already. All good. Good working for door making. After sales service is excellent, fast reply.
Algeria L****y
Very accurate works well with the software. I am looking forward to using this machine for many years to come. It was well worth the investment and it is an engineering marvel. I will highly recommend to anybody in the business of cabinet making.
America N*******c
The machine works very well in the jobs we are having. The operation of this machine is simple. We are so happy with the purchase. Hope I will get my second purchase from iGOLDENCNC.
The five-axis machining center can process planes, curved and inclined surfaces, oblique holes, 2D and 3D curved surfaces, and 3D lines. Besides, a 5 axis CNC machine can realize continuous milling, engraving, drilling, and sawing in all directions with one fixing and positioning of the workpiece.
The high-precision 5 axis machining centers have extensive applications in the furniture, molding, construction, machine manufacturing, civil and military industries. It can be used to produce:
- Box-type parts, like automobile engine cylinder heads, clutch and gearbox housing, pumps
- Complex curved surfaces, like bevel gear wheels, pinions, impellers Irregular parts, including drilling, milling, boring, expanding, reaming, and rigid tapping processes
- Molds, such as ship molds, automotive molds, construction molds
- Statues and sculptures Large-sized wood furniture
- Styrofoam or gypsum models
There are many types of horizontal 5 axis CNC machine.
1. Double swing head form: two coordinate axes directly control the direction of the tool axis.
2. Drooping rotary head form: two coordinate axes are at the top of the tool, but the rotary axis is not perpendicular to the linear axis.
3. Double turntable form: two coordinate axes directly control the space rotation.
4. The sagging table form: two coordinate axes are on the table, but the rotation axis is not perpendicular to the axis.
5. One swing and one turn form: one coordinate axe acts on the tool and the other acts on the workpiece.
5 axis CNC machine features with high efficiency and high precision, and complex machining can be completed in one clamping of the workpiece. It can be adapted to the processing of modern molds such as auto parts and aircraft structural parts. There is a big difference between a five-axis machining center and a five-sided machining center. Many people don’t know this and mistake the pentahedral machining center as a five-axis machining center. The five-axis machining center has five axes X, Y, Z, A, C. X, Y, Z axis and A, C axis form a five-axis linkage processing, good at space surface processing, special-shaped processing, hollow processing, punching, oblique Holes, bevel cuts, etc. The “pentahedral machining center” is similar to a three-axis machining center, except that it can do five faces at the same time, but it cannot do special-shaped machining, beveled holes, cut bevels, etc.
Speaking of the features of the five-axis CNC machine tool, it is necessary to compare with the traditional three-axis CNC machines. 3 axis CNC machine is relatively common in manufacturing, and there are several forms such as vertical, horizontal and gantry. Common machining methods include end milling and side cutting of end mills. The profiling of ball-end knives and so on. However, no matter which form and method have a common feature, the direction of the tool axis remains unchanged during the machining process, and the machine tool can only realize the rectangular coordinates of the tool through the interpolation of the three linear axes of X, Y, and Z Movement in the department. Therefore, in the face of the following products, the disadvantages of the low efficiency of the three-axis machine tool, the poor quality of the processed surface, and even the inability to process are exposed.
The 5 axis CNC machine price should be the most concerned factor for everyone who wants to buy 5 axis CNC router. Because 5 axis CNC router machine has been more and more widely used in various fields, more and more factories have chosen to use 5 axis CNC mill machines to produce workpieces, so the 5 axis CNC machine price will be a bit high Because its main customers are factories, not individuals. If you have a factory that needs a 5 axis CNC machine to process workpieces, then I think this would be a good choice. The reason for the high price of the 5 axis CNC machine is also related to the configuration of the machine and the quality of the machine. The higher the manufacturing cost of the machine itself and the better the quality of the machine, the more expensive it will be. Of course, in addition to this industrial 5 axis CNC routers, IGOLDENCNC also has a variety of small 5 axis CNC machines and mini 5 axes CNC routers. These machines are also five-axis, but the structure is simple and the functions are relatively small, but these small 5 The price of axis CNC machine is relatively cheap about 3000 US dollars. The price of an industrial-grade 5 axis CNC machine is about US$20,000 to US$50,000, so the price range of the 5 axis CNC machine price is also very large. If you want to buy a 5 axis CNC machine, you can tell BuyCNC For your budget and what you want to process, we will have professional engineers recommend the most suitable 5 axis CNC router machine for sale.
