CNC Rotary 4 Axis CNC Router Milling Engraving Machine

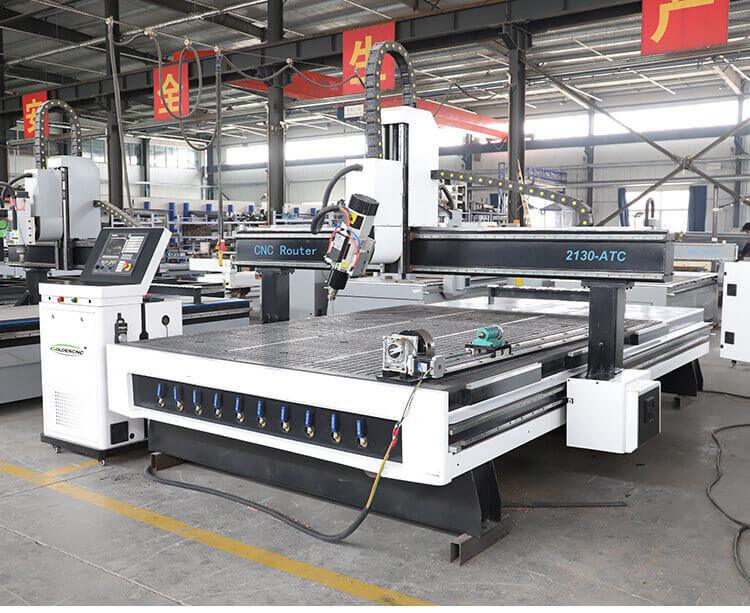

4 Axis CNC Router Machine

4 axis CNC router is to increase the fourth axis C axis on the basis of the ordinary plane three axis CNC router machine. The existence of the C-axis can be a main shaft that swings from side to side and rotates 180°, or it can add an additional rotating shaft that can rotate 360°.

The main shaft can swing 180°C axis left and right. This 4 axis CNC machine can not only realize plane processing, but also realize double-sided processing. And mainly do some surface treatment of 3D workpieces.

Another type of 4 axis CNC router is also called rotary axis CNC router machine. Compared with the 3-axis CNC router machine, this type of 4-axis CNC machine adds a rotating device to the 3-axis CNC router. The rotary device mainly realizes the processing of cylindrical workpieces. It should be noted that whether it is the X-axis or Y-axis direction of the machine, the rotating device can be placed in any position you want. In addition, the rotating device can not only be placed on the machine, but also independent of the machine. And easier to operate, maintain and transport. Therefore, the CNC 4 axis router can realize the machining and planing engraving of cylindrical workpieces.

4 axis CNC router is quite good at processing 3D workpieces. It generally falls into two types. The first type described hereunder is equipped with a rotating spindle that can swing by 180°. It can engrave 3D patterns and drill holes on side surfaces of wood, MDF, acrylic, foam, rubber, and other materials. For example, 3D letters, signs, reliefs, and sculptures.

Applications

• Carpentry: relief and hollow carving of hardwood furniture.

• Furnitures: wooden doors, cabinets, panel, office furniture, solid wood furniture, doors and windows of tables and chairs,

• Advertising: advertising signs, logo production, acrylic cutting, plastic molding, and various materials for advertising decorations.

• Woodworking: audio, game cabinets, computer tables, sewing machines, musical instruments.

• Panel Processing: insulation parts, plasticized workpieces, PCB, bowling track, stairs, anti-fold special board, epoxy resin, ABS, PP, PE, and other carbon mixtures.

• 4-axis CNC machine is applied to aluminum cutting industry, aluminum plate, aluminum plastic plate, aluminum honeycomb plate, aluminum profile, 3D machining process, wave board production, special-shaped artificial sheet cutting, LED, neon slotted literal cutting, plastic suction light box mold production, acrylic, copper sheet, PVC sheet, artificial stone, MDF and plywood sheet cutting & milling.

What are the advantages of this 4 axis CNC machine?

1. More powerful functions. This kind CNC Machine can not only realize the processing of flat work pieces, but also the processing of three-dimensional work pieces and irregular work pieces.
2. Wider range of applications. This four-axis engraving machine can be used for processing effects such as hollowing, engraving, cutting, embossing, sawing and curved surface on foam, wood, plaster, composite materials, aluminum copper, acrylic and other materials.
3. Higher safety factor. This type of 4 Axis CNC Router Machine has the functions of parameter backup and parameter recovery, which effectively prevents the loss of important parameters.
4. Smarter operation. This type has the intelligent processing memory function, and supports for break point continued carving. For example, if the machine encounters a power outage, it can continue to process and it does not affect processing efficiency.
5. Stronger anti-interference. This type of machine has passed many CE tests, no matter what processing environment the machine is in, it can complete the ideal processing effect in the best working condition.
6. Better software compatibility. Adopting an open software interface, it can be compatible with the processing codes generated by various CAD / CAM design software, such as type3 / Artcam / Castmate / Wentai, to ensure the realization of various design functions.

How to choose the right 4 axis CNC wood carving machine

In addition to the most common three-axis CNC Router, there are now four-axis three-linkage CNC Router and four-axis four-linkage CNC Router, which are what we say as the real four-axis and fake four-axis engraving machines. For customers who want to do both three-dimensional materials and flat materials, they don’t know what they can do and what are the differences, and they are entangled in their own requirements to choose which one is suitable. Then IGOLDENCNC is here to give you a detailed answer to distinguish between true four-axis and fake four-axis, to help you find a machine that suits you.

1. The four-axis three-linked movement mode is X (beam), Y (table), Z (carving spindle), and C (rotating axis). Three of the four axes can move at the same time, either X, Y, C or X, Z, C. In other words, table Y and the rotation axis C can only be transformed into each other, but they cannot move at the same time. That is to say, the three axes are really moving, that is to say, the engraving machine only rotates around the axis when engraving. The four-axis four-linkage movement mode is: X, Y, Z, C four axes move simultaneously.
2. The four-axis three-linked engraving machine is mainly suitable for engraving planes and symmetrical, regular-shaped, symmetrical circular carving patterns that are not complicated, such as olive pits, cylindrical reliefs, that is, embossed carvings on the surface of the cylinder, wood Most of the stone materials, such as the famous Panlong Column, can be realized by this kind of three-axis and rotating-axis engraving machine. Four-axis suitable for carving can be used for regular, irregular, symmetrical and asymmetrical round carvings with complex and asymmetrical patterns. It is difficult to generate 4-axis curved surfaces, and there is generally no subsequent processing of 4-axis. Workpieces that can be processed by a 3-axis machine can also be processed by a 4-axis machine tool, but the workpiece that can be processed by a 4-axis machine tool may not be processed by a 3-axis machine tool.
3. When engraving on a quadruple and triple-link CNC engraving machine, whether it is flat or round, you can think of it as flat engraving. When carving, it is calculated according to the pulse. When the four-axis engraving machine is engraving, it is calculated according to 360, which means that each step is 0.000* degrees. Therefore, the operating principles of the three-axis engraving machine and the four-axis engraving machine are completely different. A four-axis engraving machine can only be called a true four-axis engraving machine if it is equipped with a special four-axis system and draw a special tool path, and it can also complete the work that only a four-axis engraving machine can complete.
4. The real four-axis linkage machine will be more expensive, and learning drawing will be more troublesome. The advantage is that the engraving speed is fast, and the four-axis can be easily done where the ordinary three-axis can’t engrave. Stair legs, general pillars, dragon holding pillars, European style furniture legs, four-axis three-linked engraving machine is to carve some reliefs and line carvings on the surface of the cylinder and can only carve simple figures like cylinders or ellipses. The four-axis linkage engraving machine is also called a three-dimensional engraving machine. This engraving machine can not only engrave cylindrical reliefs, but also engrave complex figures, European sofa legs, irregular curved surfaces, and semi-3D three-dimensional engraving.
5. Our suggestion for choosing a machine is that the different engraving requirements determine the different model and configuration of CNC milling machine 4 axis. Only the real four-axis engraving machine will be used for 3D three-dimensional engraving. For the engraving needs of cylindrical plane relief, you only need to use a three-axis system with a three-axis and rotary-axis engraving machine. After all, the price between the genuine four-axis system and the three-axis system is somewhat different. The fake 4-axis knife is always at the center of the A-axis, and the real 4-axis knife can go to both sides of the A-axis. It has a little effect on engraving the hollow objects inside. If the engraving surface is basically the same.
