Panel Saw Machine
The horizontal panel saw machine is mainly for cutting various wooden panels and sheets. It takes more space but easier to use than vertical ones. The panel sizing machine mainly includes the computer beam saw (computer CNC panel saw) and the sliding table saw. Our computer beam saw, also know as panel dividing saw or panel sizing saw, can cut wooden panels with a thickness up to 100mm and the length up to 3700mm with high speed and excellent accuracy. The computer beam saw is the most effective method of precise panel cutting with modern software that allows the saw to gain maximum yields from the materials.
Panel Saw Machine

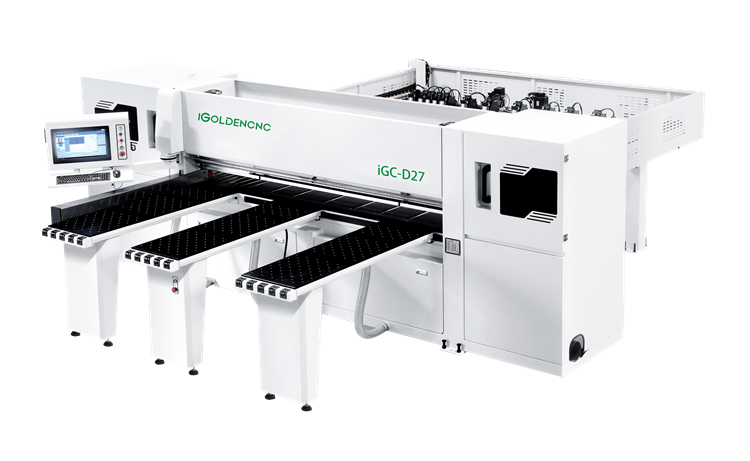

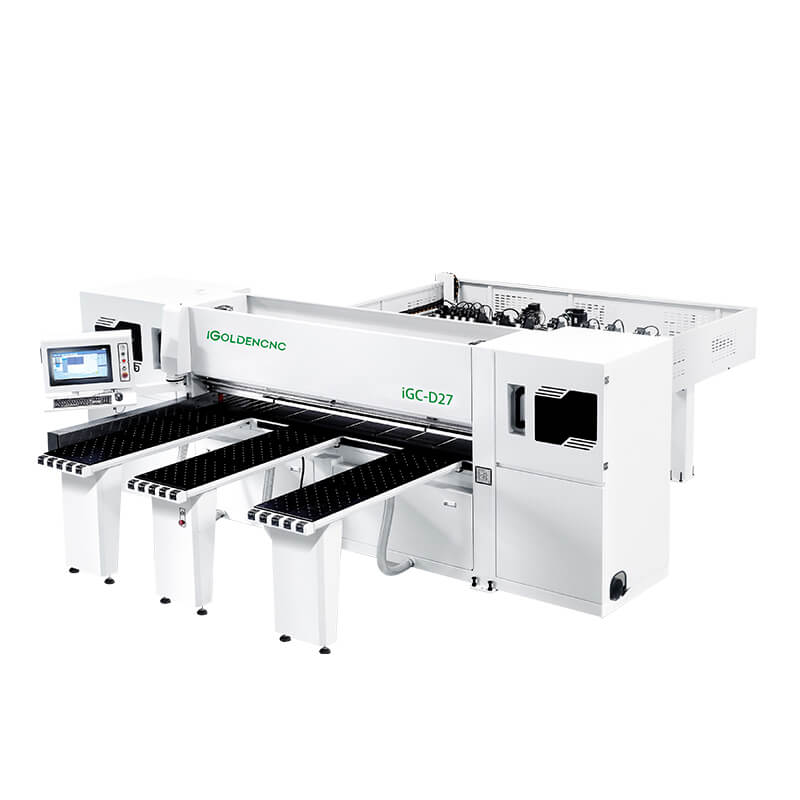

CNC Computer Beam Panel Saw Machine Widely used in density board, particleboard, medium fiber board, gypsum board, artificial stone, plexus glass, large core board, light guide board, aluminum board, aluminum plastic board, circuit board, solid wood and other boards precision cutting.
Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.
Automatic suction boards feeding machine
Automatic suction board feeding machine, which uses the principle of adsorption to automatically suction board onto the air-floating workbench. This loading method will not damage the surface of the panel.
Panel Saw Machine Video
CNC Panel Saw Parameter
| Model | iGC-D28 | iGC-D33 | iGC-D38 |
| Max. cutting length | 2800mm | 3300mm | 3800mm |
| Max. sawing thickness | 100mm | ||
| Max.cutting width | 2800mm | 3300mm | 3800mm |
| Main saw power | 16.5kw | ||
| Small saw motor power | 2.2kw | ||
| Min. sheet size for horizontal cutting | 5mm | ||
| Min. sheet size for vertical cutting | 40mm | ||
| Locate mode | Automatic | ||
| Positional accuracy | 0.02mm | ||
| Sawing accuracy | ±0.1mm | ||
| Main saw blade diameter | 350mm-400mm | ||
| Small saw blade diameter | 180mm | ||
| Main saw speed | 4100r/min | ||
| Sawing speed | 0-80m/min | ||
| Return speed | 120 m/min | ||
| Dimensions | 5300*5950*1900mm | 5900*6650*1900mm | 6300*7500*1900mm |
| Total power | 27KW | 27KW | 29KW |
| Opention | Side function, automatic typesetting software, automatic loading platform | ||

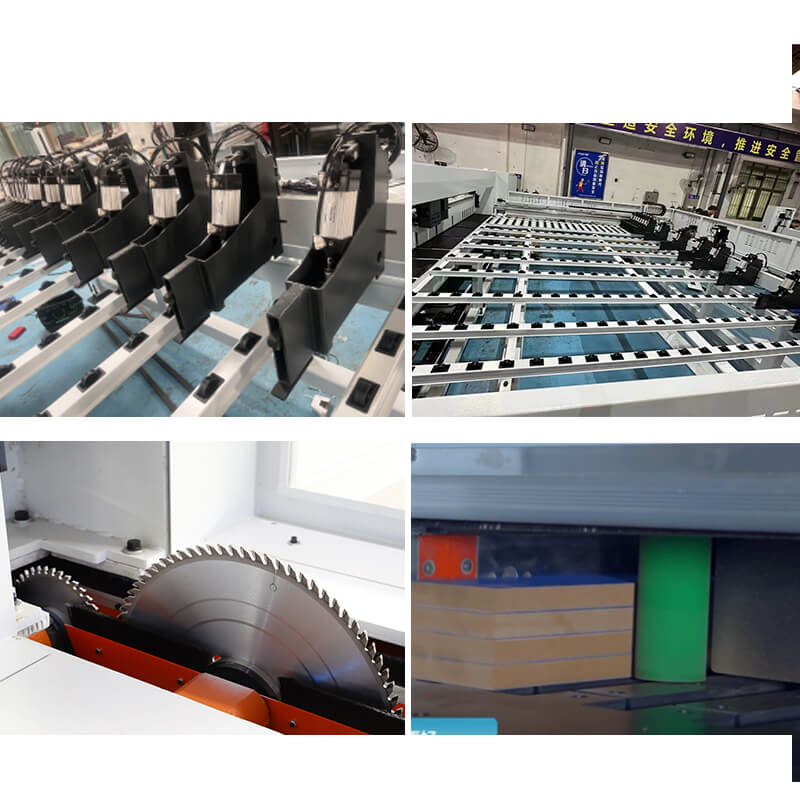

CNC Panel Saw Advantage
1.High quality steel plated with hard chrome metal table, effectively reduce scratches
2.The height of the main saw and the pressure beam can be automatically adjusted according to the sawing thickness to achieve the best sawing effect.
3.The driving system of saw adopts servo control and gear rack drive, running smoothly. The saw stroke can be automatically adjusted according to different cutting lengths, reducing the empty stroke and improving the working efficiency
4.Lengthen the floating table, the operator is more convenient, easy to move the plate and save manpower, the machine uses high air compressor.
5.The manipulator adopts a scissors structure, double-grasping manipulator, opening small and large density of claw , the bottom grabbing can be moved, and the plate is not damaged.
Independent lifting device for main/auxiliary saw
The auxiliary saw can be flexibly switched according to the sawing demand, and the main saw can be used for high-quality sawing.
Feed air float table
The working table adopts the imported A-class anti-special plate air float table, which effectively prevents the plate from scratching and makes the plate move more portable.
Operation interface
Panel display interface is simple and easy to understand, can edit the required sawing scheme, and can simulate sawing.
Feeding clamp device
High performance wrapping process pneumatic feeding clamp, positioning by precision servo drive.
CNC Panel Saw Applications

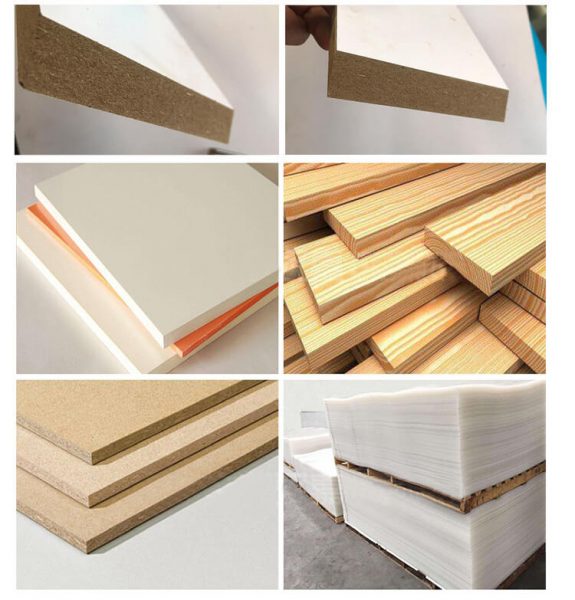

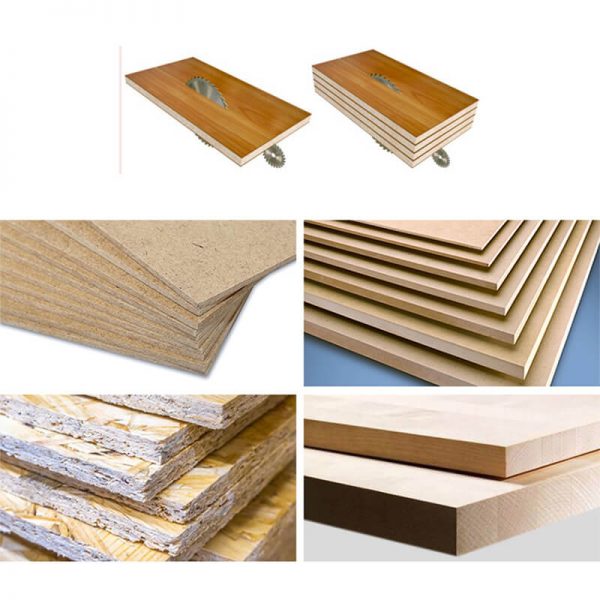

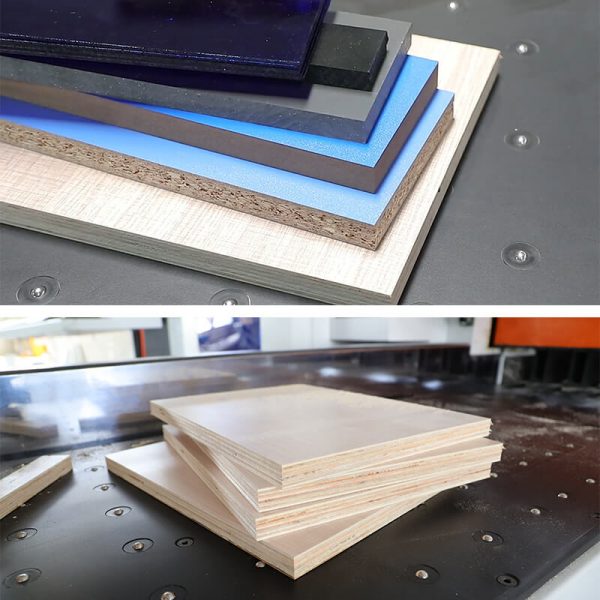

The panel saw machine is mainly for cutting and sizing the various wooden panels. For example, plywood, hardwood, MDF, particle boards, laminated boards, melamine boards, core boards, etc. It has extensive use in panel furniture production, decoration, construction, packaging, and other industries.
Small woodworking shops prefer the sliding table saw because it is cheap but efficient. It improves their work efficiency and productivity significantly compared with the manual circular saw. Besides, the cutting precision is higher.
However, for a large-scale manufacturer, the sliding panel table saw may not be able to meet the requirements for a large yield. So the best pane saw for large woodworking factories is the computer panel saw. It can be used individually merely for cutting panels. What’s more, the CNC panel saw can also be used in an automatic panel furniture production line together with other furniture making machines. For instance, side drilling machines, edge banding machines, vacuum press machines, etc.
Panel Saw Machine Buyer Guide
The panel saw machine refers to any type of sawing machine used to cut sheets into sized parts. It is designed to cut large panels of wood, MDF, plywood, melamine, etc. into small sections. The panel saw machine uses a rotating circular saw blade to size the panels.
With the large-scale application of panel furniture in the construction and decoration industries, traditional saws can no longer meet the needs of mass production and complex processes. The traditional sawing process has low work efficiency, poor precision, and consumes a lot of labor. However, the advent of panel saw machines has greatly improved work efficiency, making it quick and precise to saw wood. At present, combined with CNC technology, the CNC panel saw machine makes the entire cutting process fully automated. It can meet the needs of various wood cutting projects.
The panel saw machine is also called the panel cutting machine, panel cutting saw, panel table saw, wood panel saw machine, panel saw cutting machine, etc.
The panel saw machine price varies greatly according to different machine types. Similar to other woodworking machines, the automatic CNC beam saw costs more than the semi-automatic panel saw machine. Besides, different specifications also lead to the different panel saw machine price even for the same model of the panel saw for sale.
Generally, a sliding table saw may cost you about $2,000 to $5,000 on average. However, the price of a computer-controlled panel sizing machine could be $20,000 to $35,000. We can tell from the price that the sliding panel table saw is quite popular in small shops. While large-sized panel furniture makers prefer the computer beam saw for its high-level automation.
The computer beam saw, also the computer panel saw, is a type of panel saw machine combining computer numerical control technology. Different manufacturers may refer it to as panel sizing machine, panel dividing saw, automatic panel sizing saw, or panel sizing center.
It adopts fully automatic computer control and man-machine integration operation. Operators need to input the required data on the touch screen. Then the panel cutting saw runs automatically to accurately cut the panels.
With the rapid development of the furniture industry, the precision requirements for panel cutting saw are getting higher and higher. The disadvantages of manual panel saw machines are becoming more obvious: insufficient precision, chipping, faults, work injuries, low efficiency, etc. The birth of the computer panel table saw for sale has just effectively solved these concerns.
High efficiency
The plywood panel saw can complete the aligning, cutting, feeding, and discharging work automatically. Operators just need to set the parameters on the computer and load the boards onto the table. The cutting thickness reaches up to 100mm, so a panel sizing machine can cut 4 layers of wooden boards of 25mm at the same time. This significantly improves the cutting efficiency compared with the sliding saw machine. It is the best panel saw for mass cutting wooden boards by large-sized panel furniture manufacturers.
Excellent cutting precision
The computer panel cutting saw adopts mechanical arms to clamp the wooden boards and a high precision servo system to control the feeding precision. Besides, the panel saw machine also uses square precise guide rails to ensure the operation accuracy of the saw carrier. All the best panel saw kit not only guarantees excellent cutting precision but also increases working efficiency.
High utilization rate
One of the biggest advantages of the computer table panel saw is that the utilization rate of the board is relatively high. According to the requirements of customers, the specifications of the single board can be automatically formed into the size required by the sample. And then the software of the panel saw machine will optimize the cutting layout and combination.
Safe and correct operation
The plywood panel saw works automatically without human intervention. Compared with traditional saws or panel saw machines, it is safer and avoids errors caused by human calculation or input errors. This also avoids unnecessary losses.
Simple operation
With a reliable control system, the interface of a CNC panel cutting machine is concise and easy to use. A single operator can potentially manage two or more machines at once. It has a complete guidance and warning alarm to help revise malfunctions. It also can edit or simulate saw-cutting programs through compatibility with the optimization software, barcode management software, and automation software.
