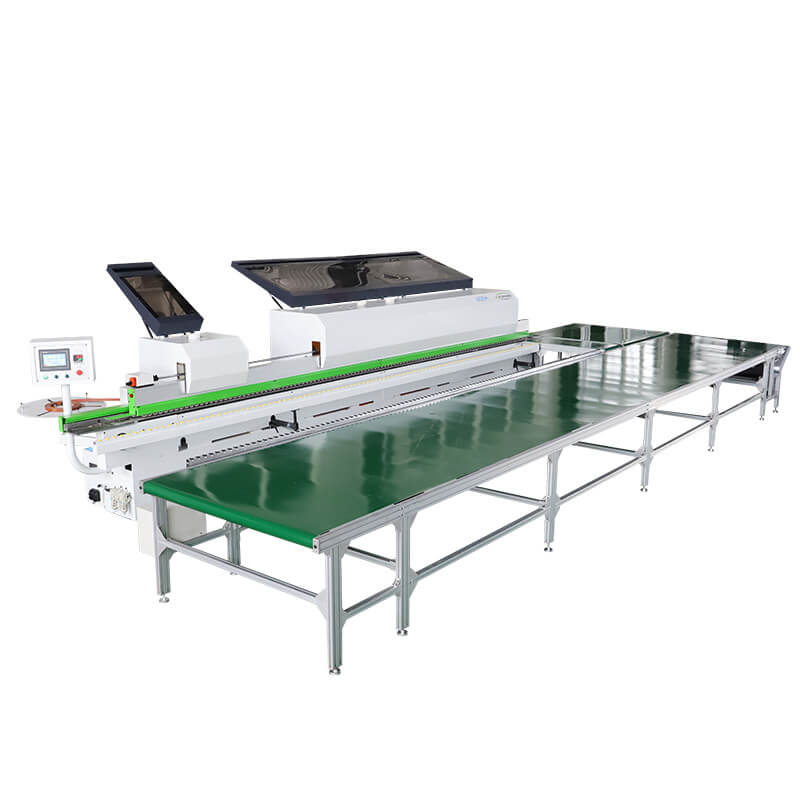

Automatic Edgebander Return Conveyor

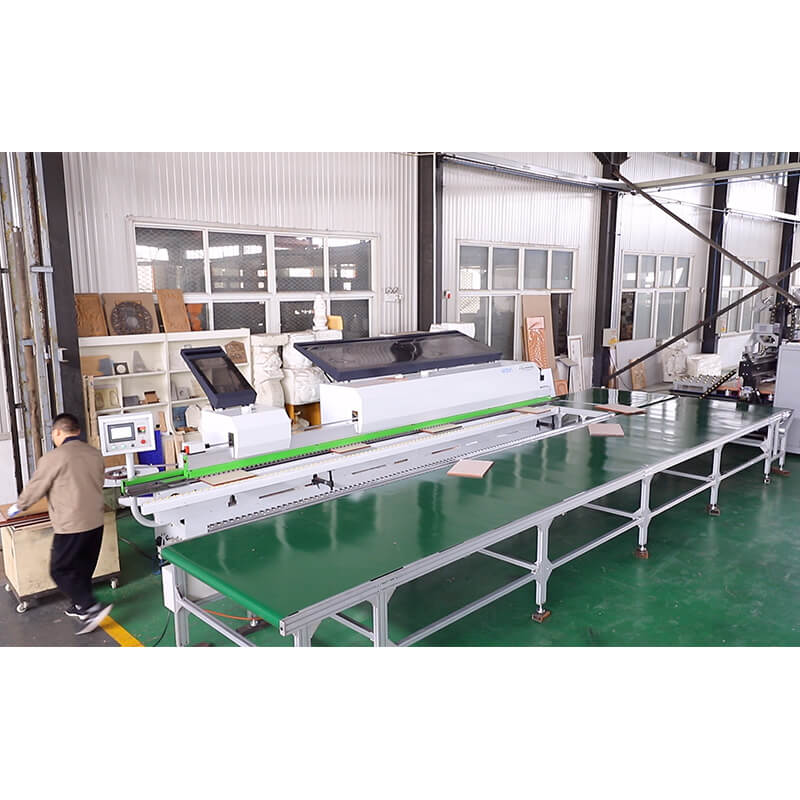

This is an automatic edge banding machine circular production line. It consists of a fully auto edge banding machine and auxiliary belt conveyor platforms. One operator is required to run this production line, which significantly improves the edge banding efficiency and reduces labor costs.
As a cost-effective fully automatic edge banding machine, it can complete gluing, banding, edge cutting, rough trimming, fine trimming, tracking, scraping and polishing functions automatically.
ATC CNC Router Video
Edgebanding machine Parameter
| Specific functions | pre-milling, gluing 1, pressing belt 1, gluing 2, pressing belt 2, end cutting, rough trimming, finishing, profiling tracking, edge scraping, polishing 1, polishing 2 |
| Sheet thickness | 9-60mm |
| Minimum processing width of sheet | ≥80mm |
| Minimum processing length of sheet | ≥120mm |
| Edge banding width | 15-55mm |
| Conveyor belt power | 3.7kw |
| Feeding speed | 15～22m/min |
| Total power | 20kw |
| Dimensions | 8100*900*1600mm |
| Weight | 2600kg |

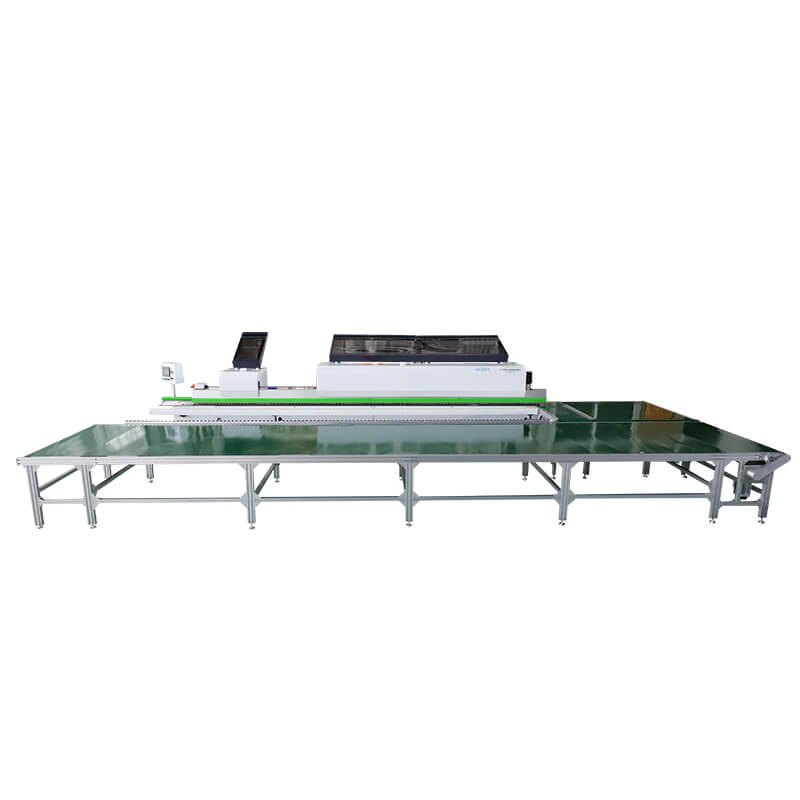

Edge Banding Circular Production Line
1. This line consists of one automatic edge banding machine and several belt conveyor platforms. It is very easy and convenient to operate this production line.
2. The edge banding machine can complete multiple functions automatically, include gluing, banding, end cutting, rough and fine trimming, profile tracking, scraping, and polishing.
Double glue pot
Non-sticky pot, uniform sol, cylinder control pressure roller, better tape effect.
End cutting
Through the structure of automatic profiling and high-frequency high-speed motor, the redundant edge bands before and after are cut off to ensure a smooth and smooth section.
Rough trim : The rough trimming knife is a flat knife, which is used to trim the excess edgebanding material on the upper and lower parts of the processed sheet edge band, so that the upper and lower parts of the trimmed sheet are smooth and smooth.
Fine trim : The finishing knife is an oblique repair, used to repair the excess edge banding material after rough repair on the upper and lower parts of the processed sheet edge band, and at the same time, make the natural transition between the sheet material and the edge band in an arc shape.
DEITA PLC control system
The independent LCD screen has a touch screen speed control function, and you can see the operation process of the machine more clearly, real-time monitoring, real-time adjustment, and more precise.
Pre-milling
When the edge-sealing surface of the plate is not flat, it can be milled first and then glued and pressed.
Scraping and Cleanning
It is used to eliminate the ripple marks (cut marks left by the trimming knife and the finishing fillet) caused by the non-linear motion cutting process of the trimming.

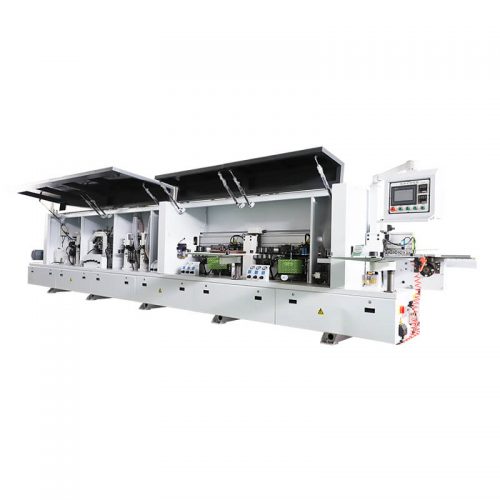

Automatic Edge Banding Machine
Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
Contact Us Today to Get Price!
An edge banding machine is an automated woodworking machine that carries out pre-milling, gluing, end trimming, rough trimming, fine trimming, corner trimming, scraping, cleaning separation for cabinets and furniture making. The automatic edge bander is designed for straight edge banding and trimming of MDF (medium density fiberboard), blockboard, solid wood board, particle board, polymer door panel, melamine, and plywood.
Abilities
Automatic edge banding machines are used to pre-mill, bond the edge banner to the substrate, trim the leading and trailing edges, trim top and bottom flush with the substrate, scrape any surplus, and buff the finished edge. All works will be finished in one machine, which is an upgraded version of the traditional manual edge banding in modern furniture making.
Pre-Milling
The corrugated marks, burrs or non-perpendicular phenomena caused by the panel saw or slitting saw are re-modified with double milling cutters to achieve a better sealing effect. It makes the bonding between the edge band and the plate more closely, and the integrity and aesthetics are better.
Gluing
With the special structure, the sealing board and edge banner are bonded on both sides to ensure stronger adhesion.
End Trimming
Through precise linear guide motion, automatic mold tracking and high-frequency high-speed motor fast cutting structure are adopted to ensure that the cut surface is smooth.
Fine Trimming
All adopt the automatic tracking of the mold and the high-frequency high-speed motor structure to ensure the smoothness of the upper and lower parts of the trimmed panel. It is used to repair the excess material up and down the strip of the processed sheet. The finishing tool is an R-shaped bit, which is mainly used for PVC and acrylic strips of panel furniture, preferably edge strips with a thickness of more than 0.8mm.
Scraping
It is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of trimming, so that the upper and lower parts of the plate are smoother and neater.
Buffing
Clean the processed panel with a cotton polishing wheel, and polish the end face of the edge banding to be smoother.
Slotting
It is used for direct grooving of wardrobe side panels, bottom panels, and it is more convenient and quick to reduce the process of panel sawing. It can also be used for the slotting of the aluminum edging of the door panel.
Portable Handheld Edge Bander
The portable handheld edge bander can be applied to the operation of plate straight and curved irregular borders. When the machine is installed with the fixed bracket accessories, its use method is similar to that of the traditional curved line manual edge bander. It is suitable for banding of various materials, including melamine (impregnated) paper, veneer, plastic (PVC or ABS).
Semi-Automatic Edge Bander
The semi-automatic edge banding machine is suitable for straight edge banding of MDF, blockboard and particleboard. Its capabilities include gluing, sealing, upper and lower trimming, and polishing. It is an automatic production line that can complete the conveying of panel, edge banding, upper & lower milling, and polishing at one time.
Automatic Edge Bander
The automatic edge banding machine is suitable for straight banding & trimming of solid wood, fiberboard, particleboard, MDF, plywood. The materials can be solid wood strips, PVC, melamine, and veneer. Its capabilities include pre-milling, gluing, banding, leveling, roughing, finishing, profiling, scraping, polishing, grooving.
The edge banding machine price varies greatly for different machine models. Besides, the functions, specifications, and manufacturers also have an effect on banding machine price. Generally speaking, the automatic edge banding machine price is far higher than that of the manual models. The automatic edge banding machine price ranges from $10,000 to $30,000. While the manual edge bander may only cost about $400 to $3,000.
