ATC Wood CNC Router

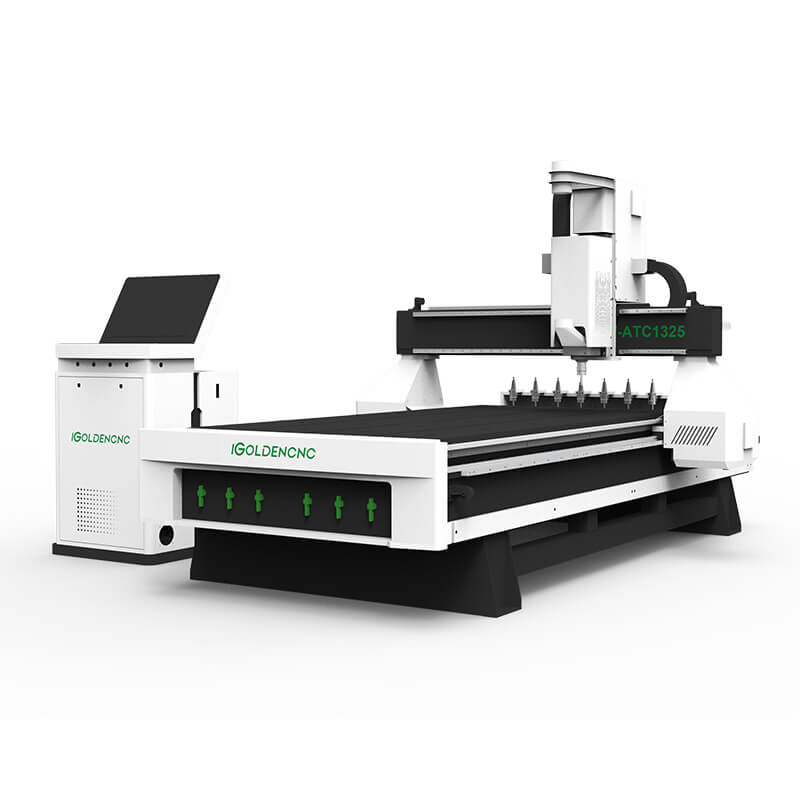

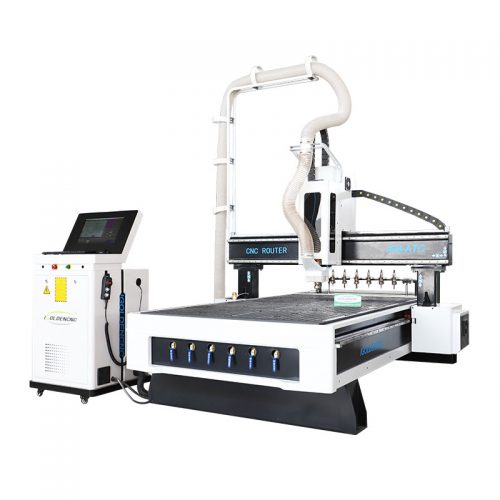

4×8 ATC CNC router machine with linear automatic tool changer kit is used for making cabinets, doors, signs, decorations and more custom woodworking projects.
Automatic tool changer kits drive the CNC machine with continuous working, that is, after each process is completed, the new tool used in the next process is automatically changed to the spindle, and the spindle picks up the tool, the exchange of tools is generally completed by the coordinated action of the manipulator, magazine and spindle.

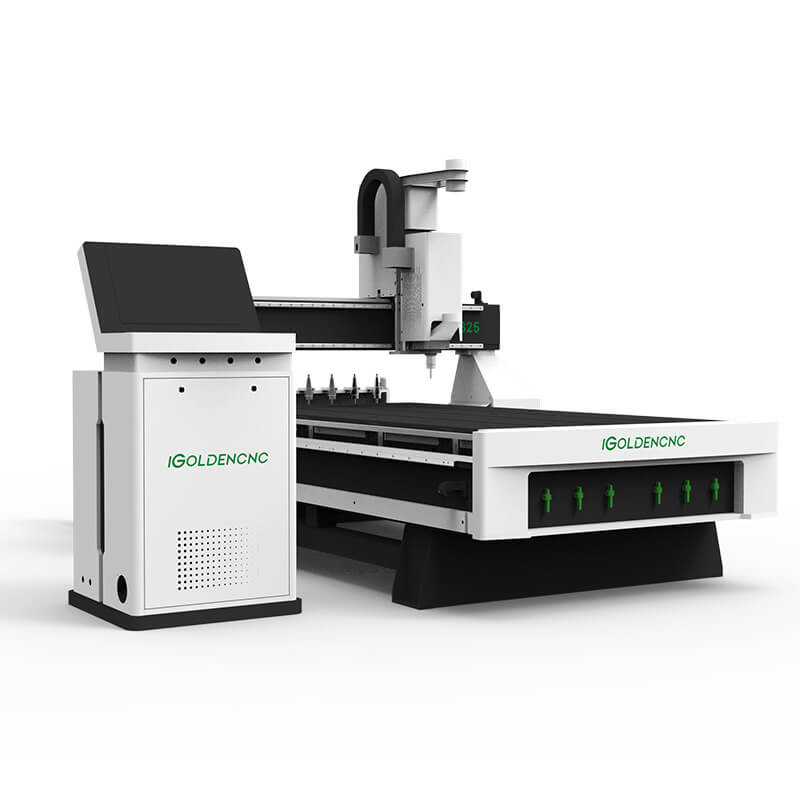

ATC CNC Wood Carving Machine
ATC CNC router is the first choice for enterprises with large production volume. It can automatically change the required tools by computer program control without stopping work during processing. And it can complete cutting, hollowing, grooving, punching, milling grooves, milling planes and other different processing.
ATC CNC router is a type of smart CNC machine with automatic tool changer spindle kit. ATC is refer to Automatic Tool Changer, the ATC spindle usually carries a tool magazine of 6 cutters or 8 cutters or 10 cutters or 12 cutters. The CNC router tools can automatically change according to the working requirements when the CNC router works, no need of manual operation, with good starting performance and large torque, it can give full play to the advantages of the machine’s high speed and higher efficiency. It adopts high-torque servo motor, which has the advantages of low noise, high speed and high positioning accuracy.
Equipped with a unique tool-changing mechanism, you can exchange the required tools at will, and the dedicated tool setting table can accurately compensate the tool length error. The tool change time only takes a few seconds, which will improve the working efficiency greatly. There are two most common types ATC CNC machines, which includes linear type automatic tool changers and rotary type automatic tool changers. The best ATC CNC router machine adopts a rotary 4th axis for 3D cutting and carving.
Used for carving, cutting wooden furniture, gifts, crafts, advertising signs and so on. Other options can be added according to different production processes, such as spindle swing, side rotation axis, etc.

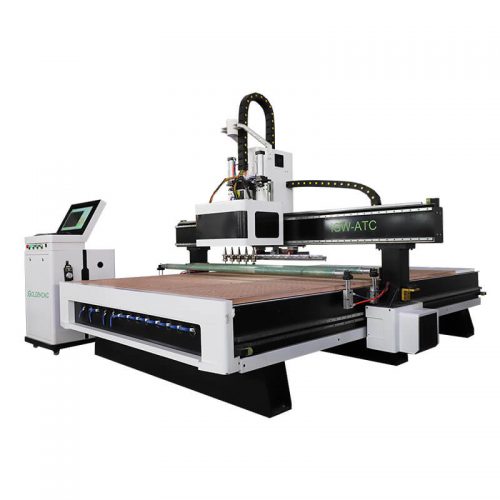

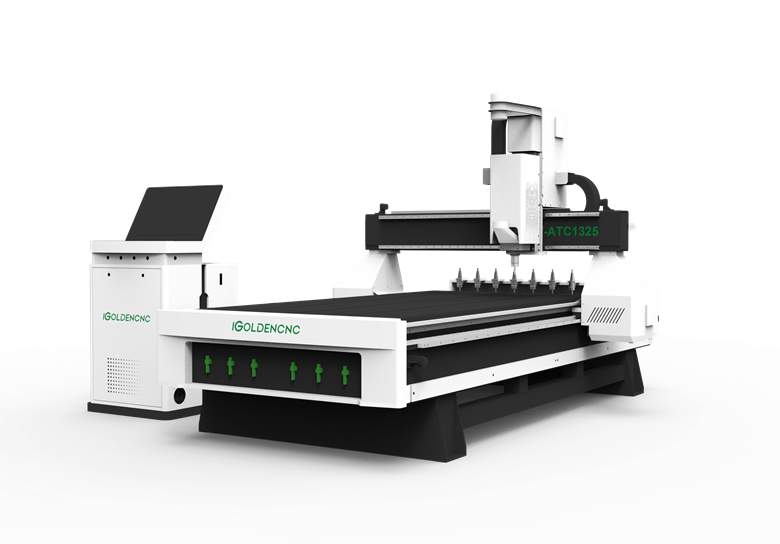

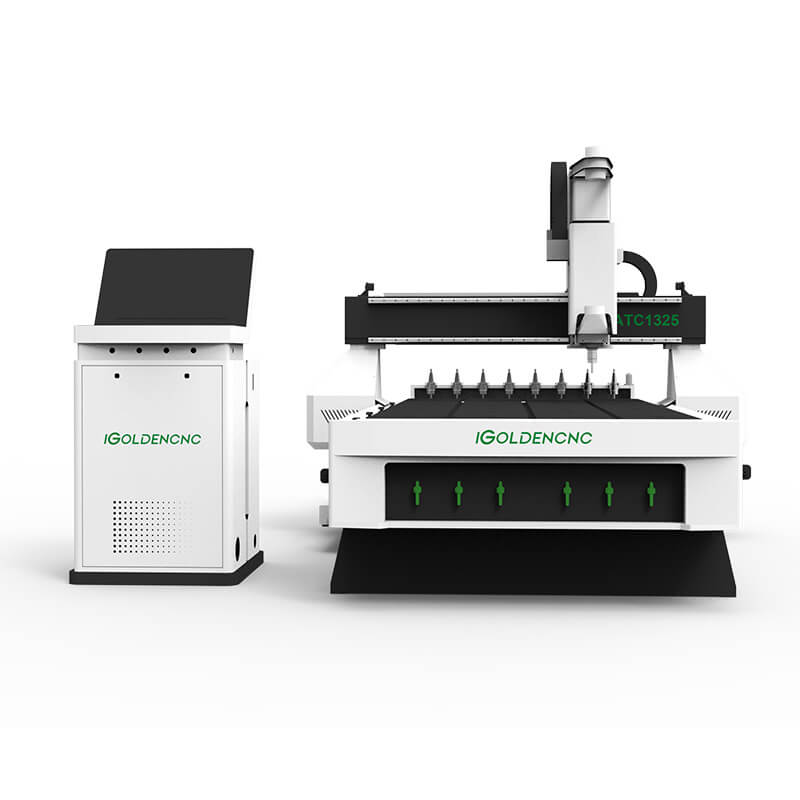

4x8 Wood CNC Router
Wood CNC Router Parameter
| Model | iGW-ATC |
| Working area | 1300*2500*200mm |
| System | LNC 4-axis system |
| Cabinet | LNC Cabinet |
| Beam | Steel Gantry |
| Countertop | Vacuum suction can suck and clamp the countertop |
| Rail | Taiwan HINWIN |
| Spindle | 9KW HQD air cooling spindle ( swing 180°) |
| Drive | Dongling 1.5KW |
| Frequency conversion | Fuling 11KW |
| Voltage | 3phase 380V/60HZ |
| Motor | X/Y axis: Dongling Servo 1.5KW + SHIMPO reducer. Z axis: Dongling Servo 1.2KW + brake |
| Rack | Taiwan xinyue rack |
| Vacuum pump | water-cooled vacuum pump 5.5KW |
| Lubrication system | Automatic lubrication |
| Vacuum cleaner | 3kw double cylinder vacuum cleaner |
ATC CNC Router Advantage
1. Taiwan LNC control system, separated keyboard control, color LCD display,can alter the parameters and automatically change the tool. Weihong controller for choose.
2. Large torque servo motor makes machine stable running with low noise, high speed and high accuracy.
3. 9KW automatic tool changer spindle makes machine with high precision, long service time and stable movement.
4. Linear guide rail: Taiwan linear guide rail 30mm with high precision, heavy loading and durable.
5. Configured with linear tool magazine of 12 tools the machine can change tools speedy and freely.
6. Vacuum worktable and strong power suction vacuum pump 7.5KW is equipped with this CNC wood carving machine for carpentry.
7. Automatic positioning pop-up pins included which make materials positoning easily and fast.
8. Strong dust collector ensures site cleanliness during the machine operation.
Wood CNC Router Machine Applications
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
The Wood Products: Three-dimensional wave plate processing, cupboard doors, wooden doors,window processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.
The Advertising Industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
Decorate Industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

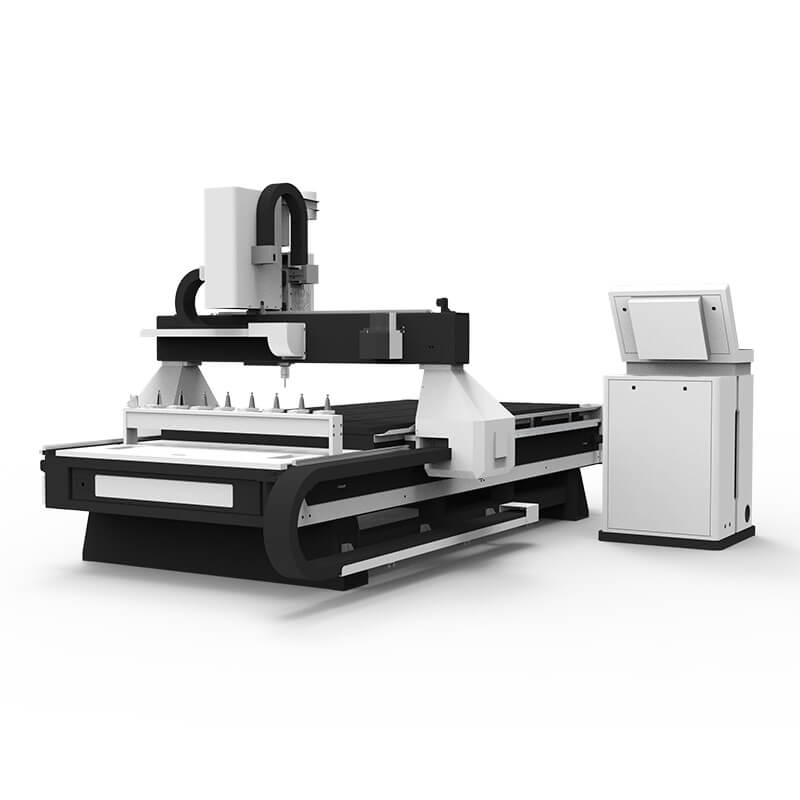

ATC CNC Router With Automatic Tool Changer Kit For Sale
In the automatic tool changing system, the device that realizes the transfer and loading and unloading of the tool between the magazine and the spindle is called the tool changer. There are two ways to exchange tools: the relative movement of the magazine and the spindle, and the manipulator. The device that uses the relative movement of the magazine and the spindle to realize the tool exchange must first return the used tool to the magazine when changing the tool, and then take out the new tool from the magazine. The two actions cannot be performed at the same time, and the tool change time longer.
However, the manipulator tool changer can grab and load and unload the bits in the spindle and the magazine at the same time during changing, so the changing time is further shortened. The method of tool exchange using a robot is the most widely used. This is because the manipulator is flexible in changing, fast in action, and simple in structure. The manipulator can complete a series of actions such as grasping – drawing – turning – inserting – returning. In order to prevent the bit from falling, the movable claw of the manipulator is equipped with a self-locking mechanism.
Wood CNC Routers can be used by beginners in woodworking, although some learning curve is involved. It is essential to familiarize yourself with the software and machine operation. However, once you grasp the basics, these machines can greatly enhance your woodworking capabilities.
Yes, Wood CNC Routers can work with various types of wood, including hardwoods, softwoods, and even engineered wood products. The cutting speed and feed rate may vary depending on the wood species and its hardness, but the machine’s versatility allows for working with different materials.
While Wood CNC Routers offer many advantages, they cannot entirely replace traditional woodworking tools. Traditional tools such as hand planes, chisels, and saws still have their place in woodworking, especially when it comes to fine detailing and craftsmanship. Wood CNC Routers complement traditional tools and enhance the woodworking process.
