4 +1 Axis Stone Bridge Saw for Marble Granite and Quartz

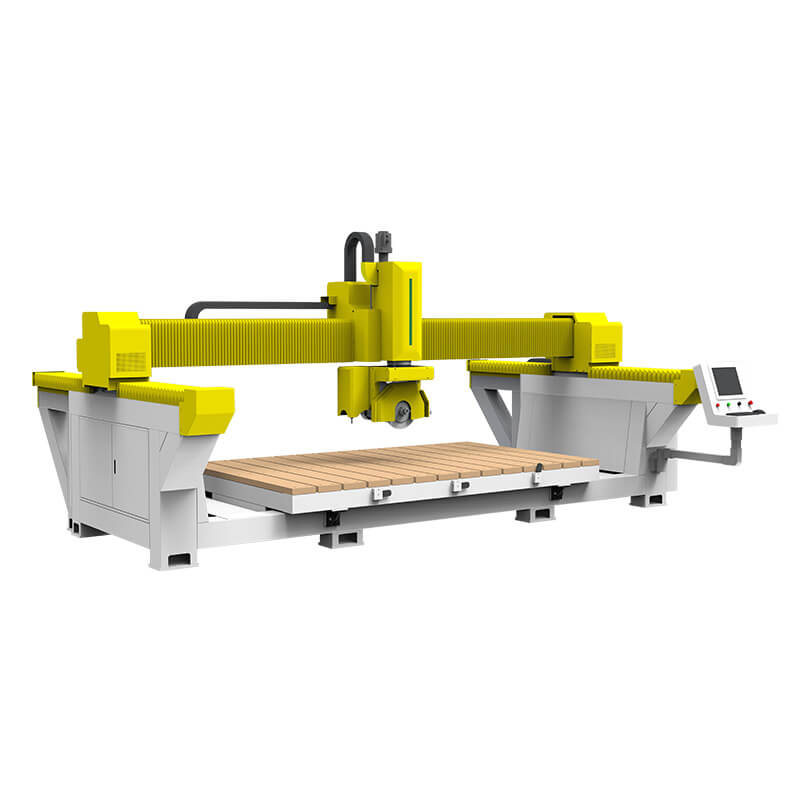

4+1 Axis Bridge Cutting Machine IGS-B

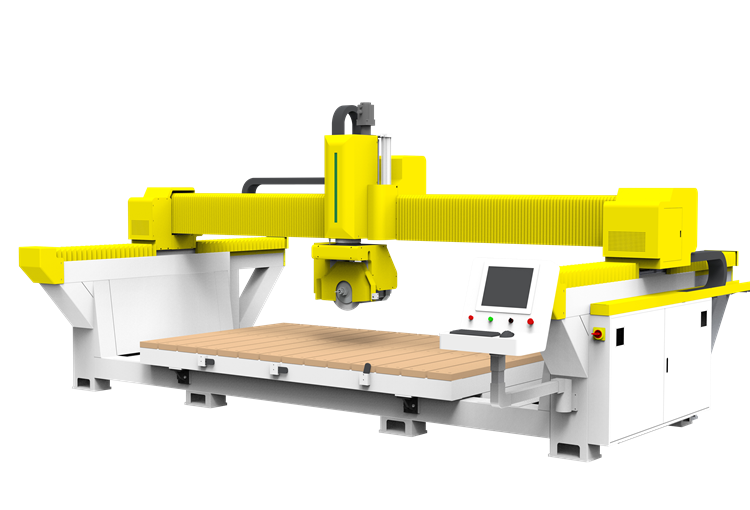

4 axis bridge cutting saw is equipped with infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it is equipped with an air cooling spindle to better engrave stone patterns. So it is also known as 4+1 bridge saw machine for stone. And the IGOLDENCNC customized CNC control system will realize high-quality and precise cutting.

It is used to cut quartz, granite, marble, rock slab, ceramic tile, slate and other stone materials. It aims to solve the problem of time-consuming, labor-intensive and high-cost high-end technology in the production process of stone countertops.

CNC Bridge Saw Machine

Stone Bridge Cutting Machine Parameter

Technical indicators	parameter
Model	iGS-B3320
Lathe bed	Heavy duty welded bed
Gantry	Steel structure
Table	Flip table
Operating stroke	3300*2000mm
Guide rail	Taiwan HIWIN30
Rack	YYC 2M
Motor	DORAN
Motor power	7.5kw/11kw / 15kw/18.5kw
Control system	Chengdu
Saw blade diameter	350mm/400mm/450mm
Motor power	XYZ axis 1.3kw (Z-axis holding brake); C axis 1.3kw
Voltage	3 . 380V/220V 50-60Hz 10A
Dimensions	565140842673mm
Standard function	Water pump, water pipe (12m long, 16mm diameter), laser positioning, knife setting instrument, can cut square, round, horse belly side cutting, Taichung basin cutting, 45° oblique cutting
Opention	Main shaft 4.5KW water-cooled main shaft, inverter, transformer, clean measuring software

Standard configuration function: Laser positioning, table flip, cutter, can cut square, round, horse belly side cutting, 45 degree cutting, Taichung basin cutting, Yin Angle drilling and milling, milling cutter opening.

Optional Functions:Suction cup displacement, photo layout, inverter, transformer, clean installation and measurement software

Saw blade motor

The machine head automatically flips ±360 degrees，7.5kw/11kw / 15kw/18.5kw。

Laser positioning

Laser positioning function, more accurate standard, improve the accuracy.

Photo layout function（opention）

After taking photos through the camera, it can be automatically typeset, saving time and effort, more accurate and efficient.

Automatic touch screen cutcam system

Professional CNC system, easy to set and machining, touch control, simple operation.

5 Axis CNC Stone Cutting Application

The 5 axis CNC stone bridge saw is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes. It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling. The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.

CNC Stone Cutting Machine Advantage

1. The machine boasts a streamlined design that takes up minimal space, making it effortless to install and transport.
2. With advanced camera technology, the machine can easily locate and display the shape of the plate on the screen, ensuring a seamless operation.
3. Equipped with a high-speed spindle motor, the milling head efficiently processesholes and inner angles while cylinders expertly press the plate. Plus, the addition of two suction cups on the backside makes it easy to move slices when the saw path overlaps.
4. this machine comes with an industrial computer and a color touch-screen for easy and efficient operation.
5. An automatic tool setting gauge is installed to ensure easy and reliable bladechecking.
6. Our system features a built-in conventional shaped drawing library and supportsthe import of DXF format files, making it even more convenient for our users.
7. The work table can be flipped up to 85 degrees, providing a convenient loading andunloading experience for our customers.
8. The machine is optional with movable protective doors with a safety lock.

Contact Us Today to Get Price!

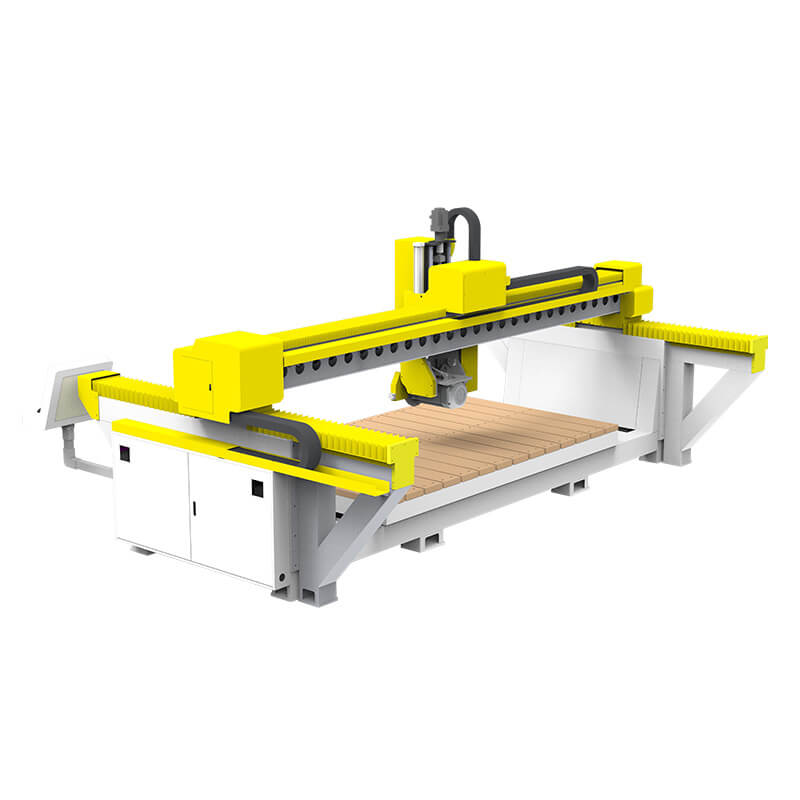

4 Axis CNC New Granite Bridge Saw Machine

This is a new launched 4 axis marble bridge cutting saw has the c axis that can rotate 0° or 45° to automatically cut stone materials. Besides, it can also be added with a camera and infraded head to increase the positioning accuracy and precision. It gains great popularity in various stone processing industries.

Features of 4 Axis CNC Bridge Saw for Kitchen Countertops & Vanity Tops

Full 3D design and stress analysis, all the accessories used are excellent, after tempering, they are machined by CNC Machine Tools to ensure the overall accuracy.
The bed body and gantry structure are welded with high-quality steel as a whole, and are tempered to ensure that the machine will not produce stress deformation for long-term use.
Taiwan high-precision ballscrew and HIWIN guide rails, the oil-immersed lubrication method used in X and Y axes, the effective waterproof and dust-proof structure ensure high precision processing and maximize the service life of the ballscrew and guide rail.
Cutting head rotate 90°, tilting 45° suitable for chamfering cutting.
The worktable installs independently for tilting vertical 85°, easier and safe loading raw materials.
By infrared ray to confirm the position of the workpiece.

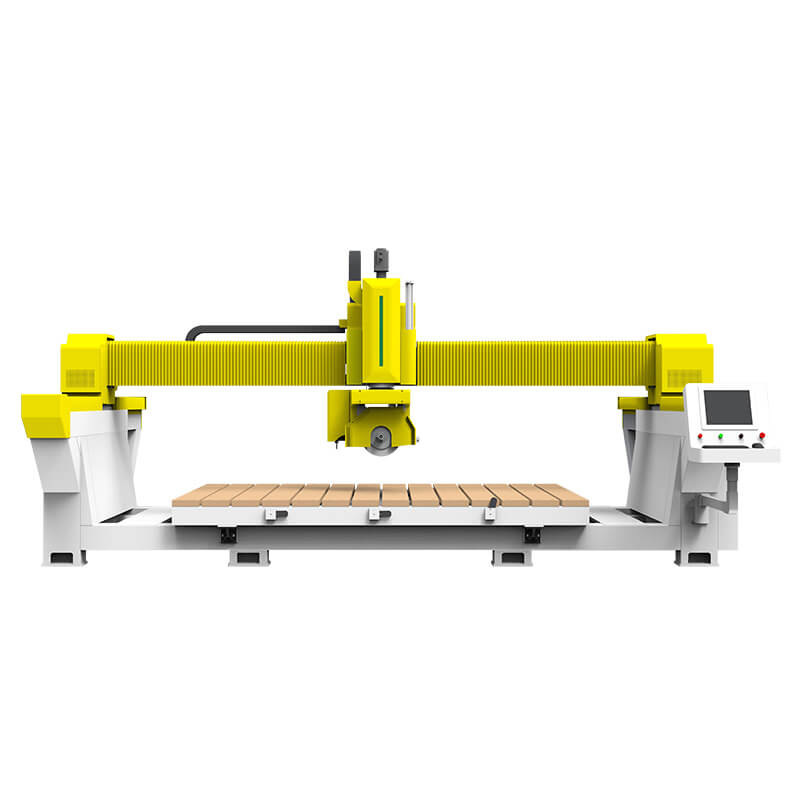

4 Axis CNC Bridge Saw For Kitchen Countertops & Vanity Tops

4 axis bridge saw stone cutting machine integrates horizontal cutting, vertical cutting, 45-degree oblique cutting, round, oval, special-shaped layout, infrared positioning, CNC automation and other functions. It is used to cut quartz, granite, marble, rock slab, ceramic tile, slate and other stone materials. It aims to solve the problem of time-consuming, labor-intensive and high-cost high-end technology in the production process of stone countertops.

Decoration workers usually use portable masonry saws to cut personalized countertops. But the speed is slow with low precision, and the stone dust is easy to cause environmental pollution. Later, some stone workers chose CNC Router Machines to cut countertops. Although the precision was higher, but the speed was too slow, even inferior to handheld masonry saws. In this case, a new type of smart automatic stone cutting tool came into being. It is the CNC bridge saw, including two common types of 4 axis and 5 axis. The following is the 4 axis bridge saw with infrared positioning for automatic stone cutting.

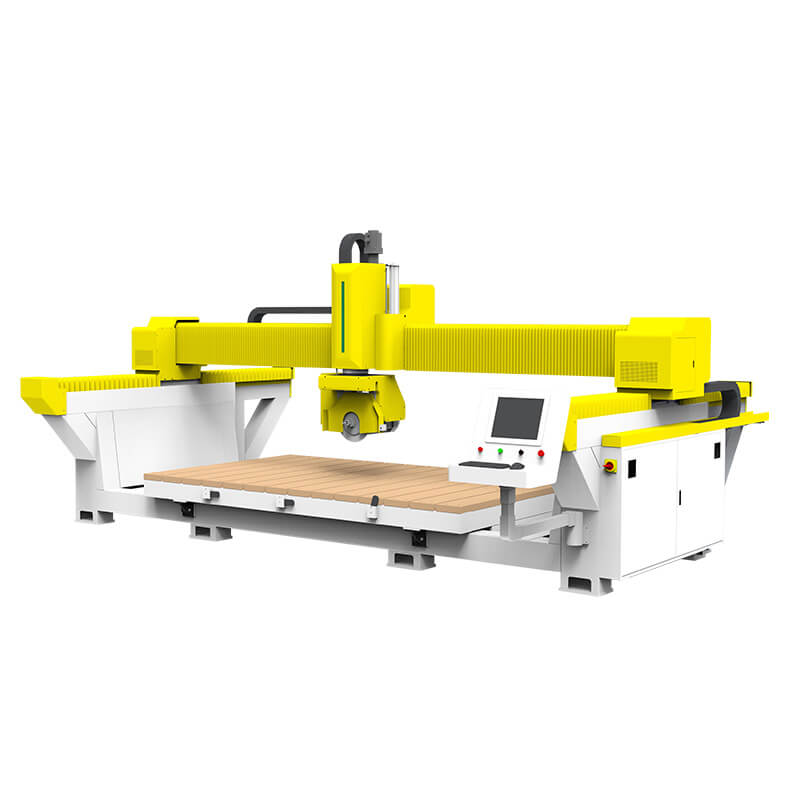

4 Axis 5 Axis CNC Bridge Saw Machine for Sale

Bridge saw machine is a type of stone cutting machine designed for diversified stone business. And CNC stone bridge cutters are cutting machines made for cutting natural stone, granite, marble, and ceramics. With a CNC stone saw, it is good at special-shaped cutting, polishing, edging, drilling, and chamfering of granite, marble, quartz, artificial stone, and natural stone. Therefore, it is also known as stone bridge saw cutting machine, stone bridge saw for quartz, bridge saw for granite, tile bridge saw, marble bridge cutting machine, stone bridge saw cutter, etc.
