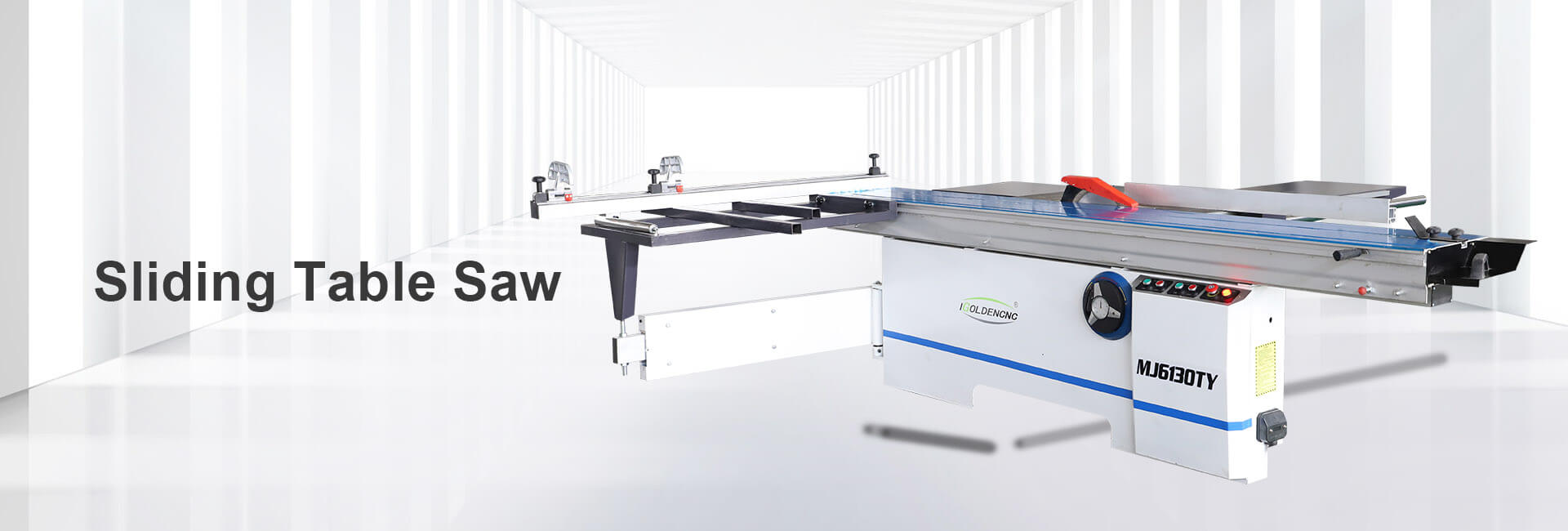

Sliding Table Saw for cutting wood panels
This machine can saw wood, veneer particleboard, various man-made boards, plastic boards, and aluminum alloy boards. There are two saw blades at the front and back. The front is the pre-cutting saw and the back is the main saw. The two saw blades work at the same time, no planing process after sawing, good smoothness, high accuracy, and no burrs.Precision panel saws are also called sliding table saws, precision sliding table saws, woodworking precision panel saws, and precision saw panel sliding table saws. They are easy to operate, stable and safe. It is an indispensable machine for mass production, standardization, mechanization and specialization of furniture.
ATC CNC Router Video
Sliding Table Saw Parameter
Technical Data
| Maximum cutting length | 2800/3000/3200mm |
| Maximum cutting width | 1250mm |
| Main saw blade diameter | 250-300mm |
| Vice saw blade diameter | 120mm |
| Main saw blade speed | 4500-6000rpm |
| Vice saw blade speed | 8000rpm |
| Main saw motor power | 4kw |
| Vice saw motor power | 0.75kw |
| Machine size | 3050*3150*900mm |
| Weight | 800kg |
90° High Precision Sliding Table Saw
It can only cut right angles and is used in the production of panel furniture, cabinets, wardrobes and other construction industries.
45° High Precision Sliding Table Saw
The saw blade can be tilted, not only can cut right angles, but also can 0°-45° boards for solid wood furniture and soft bags.
The main saw adopts electric control up and down, manual tilt digital display tilt angle.
Lengthened European style ruler
The European-style large lean ruler is stable and does not shift, which effectively guarantees the precision in the plate cutting process.
Woodworking Sliding Table Saw Application
This machine tool can cut and process all kinds of solid wood panels, wood-based panels, ABS panels, PVC panels, organic glass and other wood structures, and panels with similar hardness. It is one of the necessary equipment for the production of furniture, decoration and other industries.
Contact Us Today to Get Price!
The panel saw machine refers to any type of sawing machine used to cut sheets into sized parts. It is designed to cut large panels of wood, MDF, plywood, melamine, etc. into small sections. The panel saw machine uses a rotating circular saw blade to size the panels.
With the large-scale application of panel furniture in the construction and decoration industries, traditional saws can no longer meet the needs of mass production and complex processes. The traditional sawing process has low work efficiency, poor precision, and consumes a lot of labor. However, the advent of panel saw machines has greatly improved work efficiency, making it quick and precise to saw wood. At present, combined with CNC technology, the CNC panel saw machine makes the entire cutting process fully automated. It can meet the needs of various wood cutting projects.
The panel saw machine is also called the panel cutting machine, panel cutting saw, panel table saw, wood panel saw machine, panel saw cutting machine, etc.
After the adjustment of the machine tool is completed, according to the required plate size, align the backing plate according to the standard size on the worktable. The backing plate can be adjusted horizontally and diagonally. Adjust the main saw blade to an appropriate height (the pre-cutting saw lifting is controlled by the star handle) and then put the plate on the worktable and press the button to realize the cutting.
This table saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.
