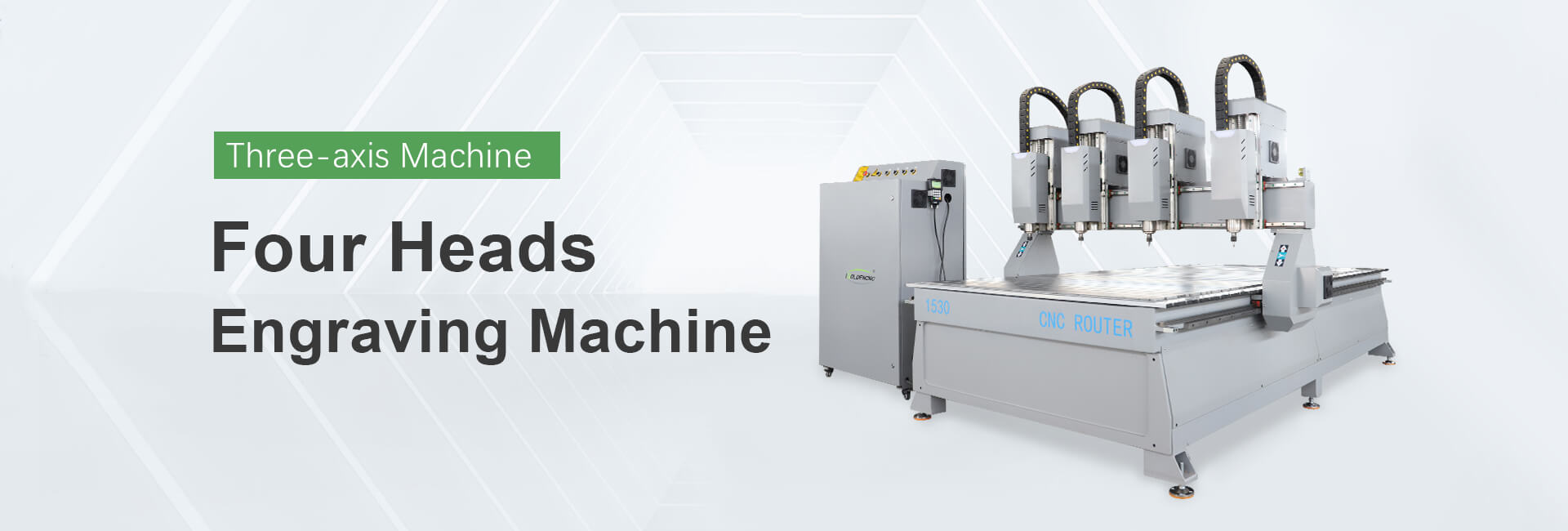

Four Head Woodworking CNC Router

3d woodworking carving machine cnc router with 4 head suitable for solid wood and composite doors, cabinet doors, large-scale plate engraving, real wood carving flower router milling, plate furniture carving, antique mahogany furniture carving, solid wood art mural sculpture and other industries, watch box, craft photo frame, calligraphy plaque, electrical counter face, sporting goods equipment, thin aluminum engraving and milling carving.This four heads cnc router is a multi heads cnc router equipped with 4 independent heads, each head is driven by one set X and one set Z motor and driver separately. It is great for heavy cutting, such as slatwall cutting, wood cutting.

Wood CNC Machine iGC-LT Video

2.2kw *4 HQD water cooled spindle

DSP control system,more convenient operation

XY axis is helical rack and gear,Z axis Ball Screw,

Taiwan Hiwin Line 20mm Square guide way

Wood CNC Machine Parameter

Technical Data

Product	3 Axis CNC Router with four-spindle	Item No.	iGW-3AD4
Machine	Machine Body	Square Tube Welding Structure
	Gantry	Steel Structure
	Spindle	HQD 2.2kw Water Cooling*2
	Worktable	Aluminium Profile Clamping Table
	Guide Rails	Taiwan HIWIN
	Rack	Taiwan XINYUE
	Ball Screw	Taiwan TBI
Electronic	Driver	LEADSHINE Step Drive and Stepper Motor
	Reducer	Japan SHIMPO
	Frequency Converter	FULING
	Electrical Components	France SCHNEIDER
Oiling	Lubrication System	Manual (Automatic Optioned)
Software	Intelligent Control System	DSP Control System
Optioned	Spindle	Italy HSD Spindle
	Driver	Japan YASKAWA Servo Drive and Servo Motor
	Tool Sensor	Automatic
	Vacuum Pump	5.5kw Air-cooling/ Water-cooling
	Intelligent Control System	Weihong NC-STUDIO
	Worktable	Vacuum Suction Table

We offer customized services according to your requests such as the working area and specifications.

Applications Of CNC Woodworking Machine:

1. Furniture: cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft fan windows, tables, chairs, etc. Wooden door cutting, wooden door artwork carving, wave board, 3d photo carving, small or large relief works, cylindrical wood carving, 3d photo carving, etc.

2. Advertising industry: advertising signs and logos, decorative products, wood, medium density fiberboard, bamboo, plastic, PVC, acrylic, metal, stone, etc.

3. Art industry: character carving, character carving and cutting, famous brand making, small gift cutting, souvenir making, carving various decorative letters, small windows, fences, figures on walls, etc.

4. Model making: engraving metal molds such as copper, aluminum and iron, as well as non-metal molds such as marble, sandstone, plastic plates, PVC pipes and wood panels.

5. Other industries: CNC wood engraving machine can engrave all kinds of large reliefs and shadows, which are widely used in craft gift industry.

Suitable Material of Linear ATC CNC Woodworking Router

Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard

Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE

Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain

Soft Metal: Aluminium, Brass, Copper, Mild Steel

Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.
