4 axis CNC Router

The 4-axis CNC Router machine refers to the computer numerical control equipment including X, Y, Z, and additional rotation axis. It has 3 straight coordinates and 1 rotating coordinate. 4-axis CNC Router engraving machines are usually equipped with rotating axes or rocking spindles, so they can contact the workpiece from different angles and effectively work, so as to realize the 3D processing of cylindrical, curved and circular surfaces.

The 4-axis CNC Router is divided into the rotary type and spindle swing type, including right rotary axis engraving machine (customizable front rotary device), 2D&3D CNC engraving machine, 3D stereoscopic engraving machine, four-axis CNC machining center, foam carving machine, spindle swing engraving machine, and lock hole machine.

Because of the rotation movement of the 4th rotary axis, 3D machining of cylindrical, arc, and circular surfaces is realized. A real 4-axis machine tool can cut wood, foam, stone, white marble, human body, Buddha statues, sculptures, handicrafts, furniture.

4 axis CNC Wood Carving Machine is one kind of foam CNC machines, it is mainly working as a CNC foam cutter for styrofoam carving, it has a big working dimension, does a good job in carving or cutting of large scale workpieces in different materials, such as wood, aluminum, styrofoam.


Wood CNC Router Rotation Head With Rotation Table

1325 4 Axis Wood CNC Router

1530 CNC Foam Cutter for 3D Foam Mold Carving

3D Carving CNC Router Machine with Three Heads

4 Axis CNC Foam Carving Router with Rotary Device

4 Axis EPS/Foam CNC Router Carving Machine

4 Axis Rotary 1325 Wood Carving Cnc Router

CNC Stone Carving Machine for Marble Granite with Rotary Axis

cnc stone sculpture​

Linear ATC Stone CNC Carving Machine for Sale

Customized 1325 CNC Foam Carving&Cutting Machine

Double Work Table 4 Axis CNC Router Machine

Spindle swing 4 Axis 3D Wood Carving Machine

4 Axis CNC Router Machine

4 axis CNC machine has four processing directions of X, Y, Z and A axis. Therefore, it can realize the processing of three-dimensional work pieces such as Dragon pillar, Guanyin statue, Buddha statue, Roman column, gourd and so on. And it can be also widely used in three-dimensional wave board processing, cabinet doors, solid wood doors, craft doors, paint-free doors, screens, craft window processing, shoe polishers, game cabinets and panels, mahjong tables, computer tables and panel furniture products' auxiliary processing.

4 axis CNC router is quite good at processing 3D workpieces. It can engrave 3D patterns and drill holes on side surfaces of wood, MDF, acrylic, foam, rubber, and other materials. For example, 3D letters, signs, reliefs, and sculptures.

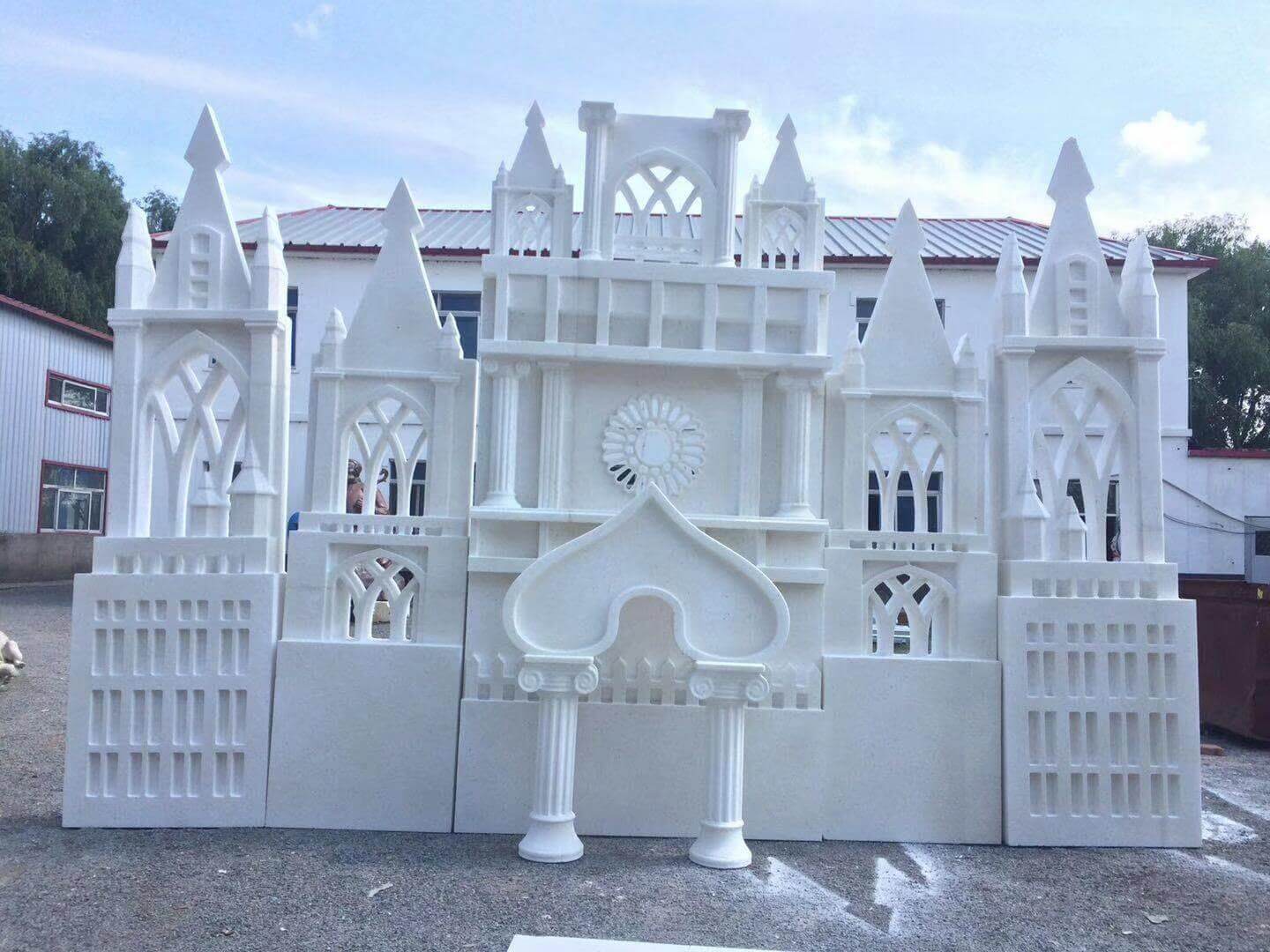

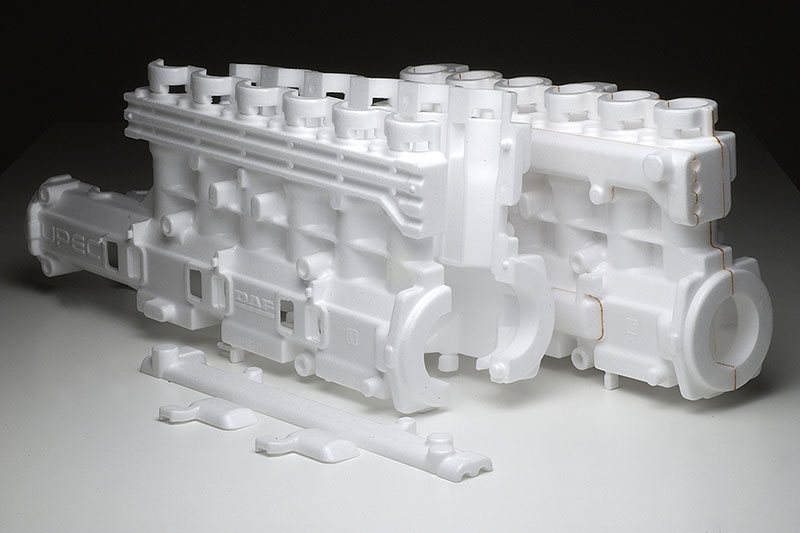

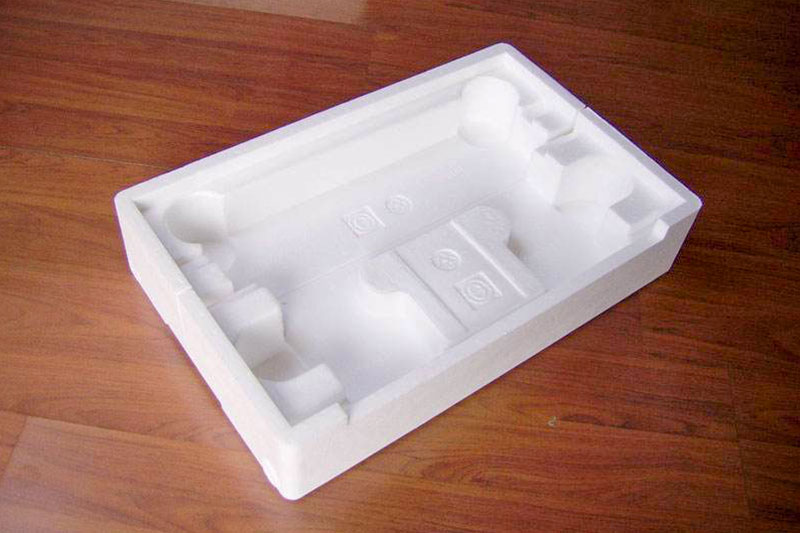

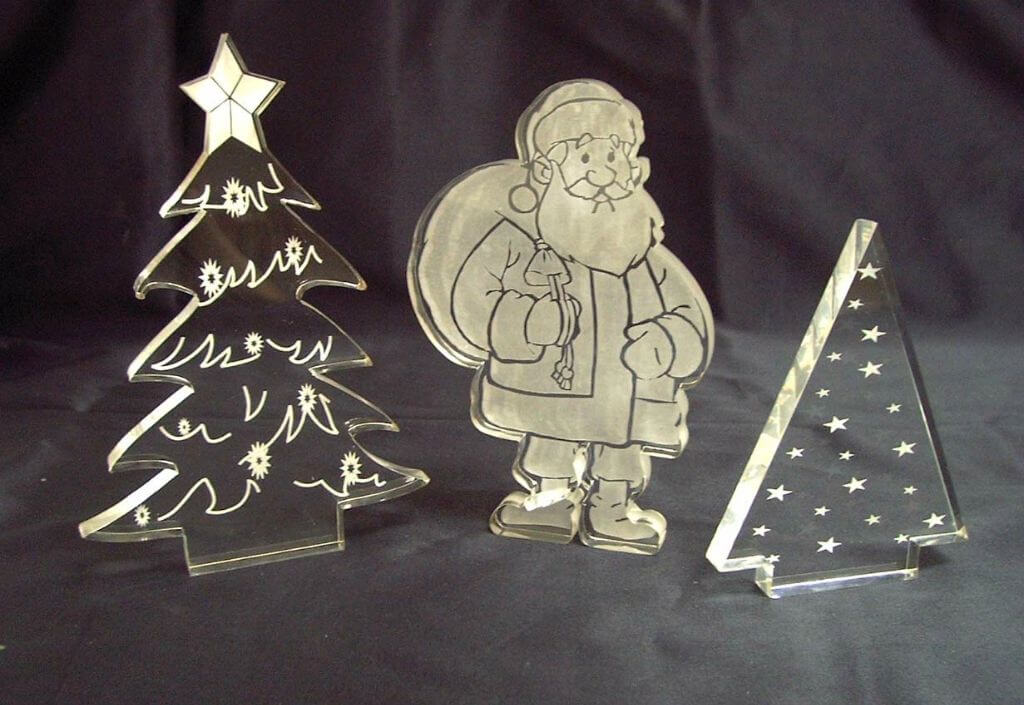

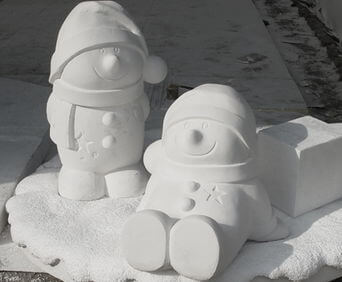

Processing Samples

CNC EVA foam moulding machines

4-axis CNC Router

What is a 4-axis CNC Router?

The 4-axis CNC Router is divided into the rotary type and spindle swing type, including right rotary axis engraving machine (customizable front rotary device), 2D&3D CNC engraving machine, 3D stereoscopic engraving machine, four-axis CNC machining center, foam carving machine, spindle swing engraving machine, and lock hole machine.

The 4-axis CNC Router is also known as 4-axis CNC wood router, 4-axis CNC router machine, best -axis CNC router, 4-axis CNC milling machine, 4-axis CNC machine, 4-axis milling machine, 4-axis CNC engraving machine, 4-axis CNC router engraver machine, 4th axis CNC router, 4-axis machining, 4-axis engraving machine, 4-axis wood CNC machine, 4-axis wood carving machine.

How does the 4-axis CNC Router work?

The first one is similar to the 3 axes CNC Router machine with X, Y, and Z axes, but it also includes a rotating device called A axis. The moving path is X-Z-A, Y-Z-A.

The other is a four-axis linkage CNC Router, which realizes 180-degree machining by swing the spindle. Its motion path is X-Y-Z-A, X-Y-Z-B, and X-Y-Z-C. 4-axis CNC router engraving machine, at the time of carving, according to 360 degrees, each step takes 0.000* degrees. At the same time, the high speed rotating spindle on the carving machine cuts the processed material fixed on the table by cutting tools according to the material processed. We can carve various 2D or 3D relief graphics and characters designed in the computer to realize automatic carving.

In daily application, the 4 axis milling machine worktable can not only achieve plane engraving but also realize irregular 3D machining and 3D carving of the irregular workpiece.

4 axis CNC Router Machine Application & Materials:

The application of the 4-axis CNC Router machine includes drilling, milling, carving, cutting, slotting, and hollowing on wood boards (such as wave boards, MDF, composite wood, solid wood). It is also suitable for leather, foam, PVC, steel, aluminum, acrylic, EPS, copper, and other soft materials.

Common solid wood: softwood, hardwood, modified wood.

Common wood composite materials: plywood, particleboard, hard fibreboard, MDF(medium-density fiberboard), high-density fiberboard, blackboard, and so on.

Mold industry: casting mold, foam mold, automobile mold, train mold, aviation mold, ship model, paraffin mold, etc.

Sculpture industry: keel, Buddha, gourd;

Woodworking industry: 3D(three-dimensional) wave board processing, solid wood door, cabinet door, craft wooden door, wooden screen, paint-free door, craft window processing, musical instrument board surface, panel furniture processing;

Advertising industry: advertising signs, acrylic processing, logo production, plastic molding, various materials decorative parts production;

Craft gift industry: stigma, bamboo tube, and so on.

What’s the worktable size of the 4 axis CNC Router?

4×4, 4×6, 4×8, 5×10 and 6×12 in feet;

48×48, 48×96, 60×120, 80×120, and 80×160 in inch;

1212, 1218, 1224, 1325, 1530, 2030 and 2040 in milometer.

Of course, the worktable size can be customized as your requirements.
