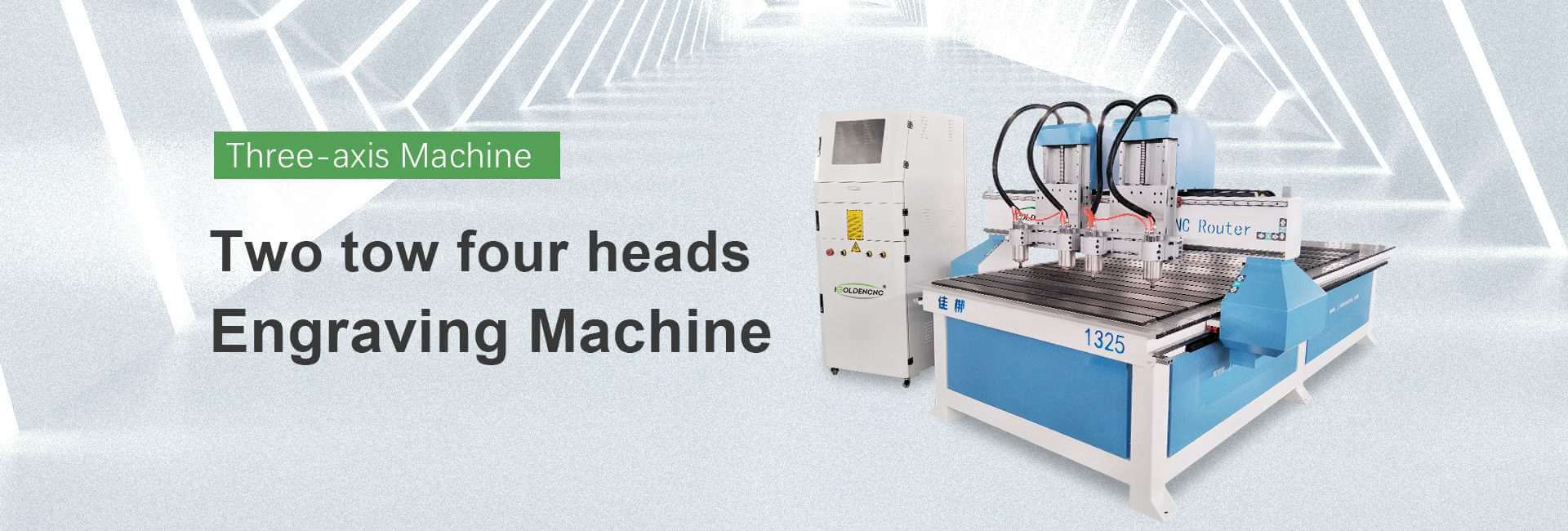

2-4 Multi Head Cnc Router Wood Carving Machine
Wood CNC Machine iGC-LT Video
2-4 Multi Head Cnc Router Wood Carving Machine Parameter
Technical Data
Description |
Parameters |
---|---|
X.Y working area |
1300*2500*200mm |
Table |
3100*2100*1700mm |
Max. Speed |
8m/min |
Max. working speed |
6m/min |
Spindle power |
3.0kw |
Spindle rotating speed |
0-24000rpm/min |
Working delicacy |
0.005mm |
Repositioning accuracy |
0.05mm |
Drive motor |
Stepper |
Control System |
DSP/Ncstudio Control System |
Command |
G code*.u00*.mmg*.plt |
Software Supported |
Artcam,Type3,other CAD/CAM |
Power (without spindle) |
1500w |
Working voltage |
AC380V/50Hz |
Running Environment |
Temperature:0 degree~45 degree |
We offer customized services according to your requests such as the working area and specifications.
Applications Of Multi Head CNC Router Machine
Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc.
Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel, literal-hole cut,lightbox mold,stamp,mould,etc.
Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
2 Heads 3D Carving Machine Features :
• High precision, big equippment can engrave 1*1mm small letters, due to the machine high accuracy.
• High travelling height, working height up to 150mm, convenient for the third party to process their semi-finished products, special shaped workpiece.
• Compared to other guide rails, Taiwan Hiwin square guide rails have the features of high precision even through the machine has worked for 2 years.
• Independent NC studio control system: independent computer case for the machine, protecting the computer and the programm from disturbed.
• Intelligent speed control: working speed intelligently controlled, idlling speed, tool speed, improving efficiency, lengthen tool life, improve yield.
• Easy operation, esay use and learning: easy, convenient, easy learning control system, can be learned in a short time.
